SKU: NK9/12TN-EU

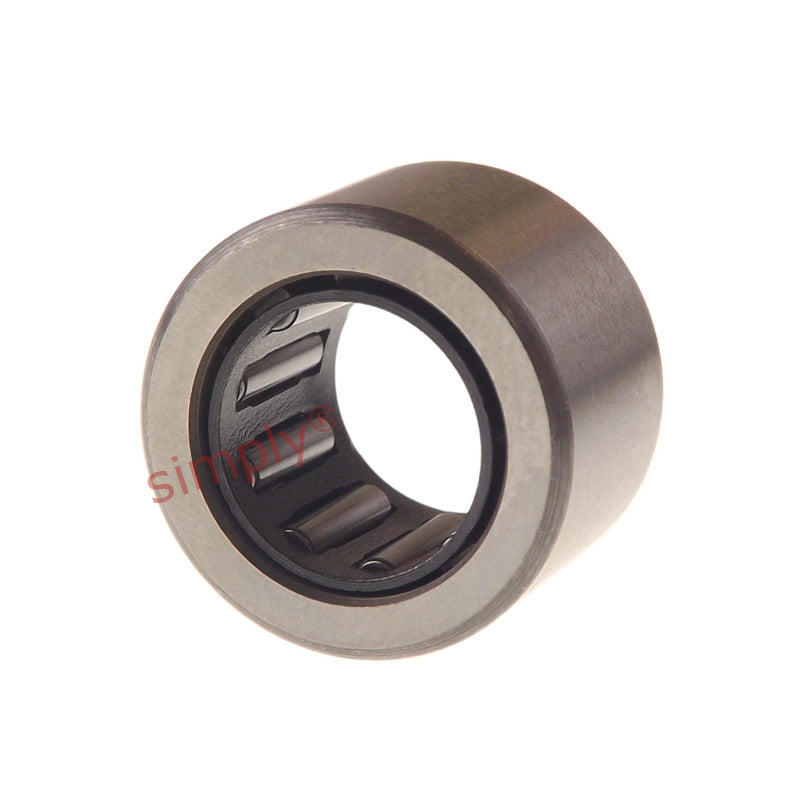

NK9/12TN Budget Needle Roller Bearing with Flanges no Shaft Sleeve 9x16x12mm
- Regular price
- €8,13 ex VAT
- Sale price
- €8,13
- Regular price
-
ex VAT
In stock
Quantity Price Breaks
10
€7,24
19
€6,83
29
€6,75
39
€6,67
49
€6,59
74
€6,50
99
€6,10
199
€6,02
249
€5,93
499
€5,85
999
€5,69
Description
|
Budget Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
Technical
| Fw | = | 9mm |
| D | = | 16mm |
| C | = | 12mm |
| Dynamic load C | = | 4400 N |
| Static load Co | = | 5200 N |
| Fatigue load limit Pu | = | 570 N |
| Speed in grease | = | 24000 rpm |
| Speed in oil | = | 36000 rpm |
| r1r2 | = | 0.3mm |
| Da max | = | 14mm |
| ra max | = | 0.3mm |
| Seal | = | G9x16x3 |
| Weight | = | 10 g |
