SKU: NJ309-CDX

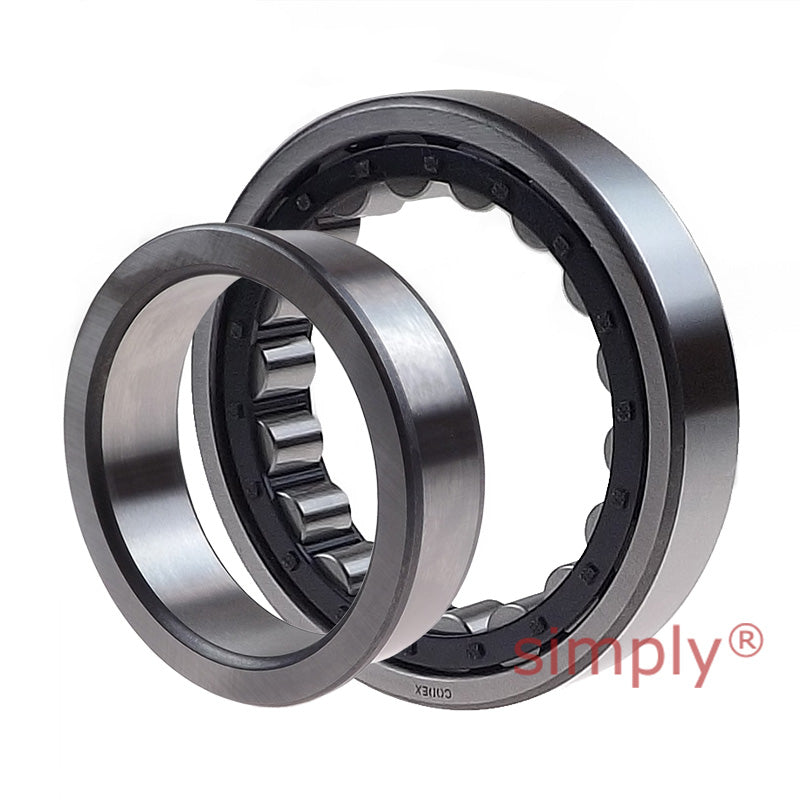

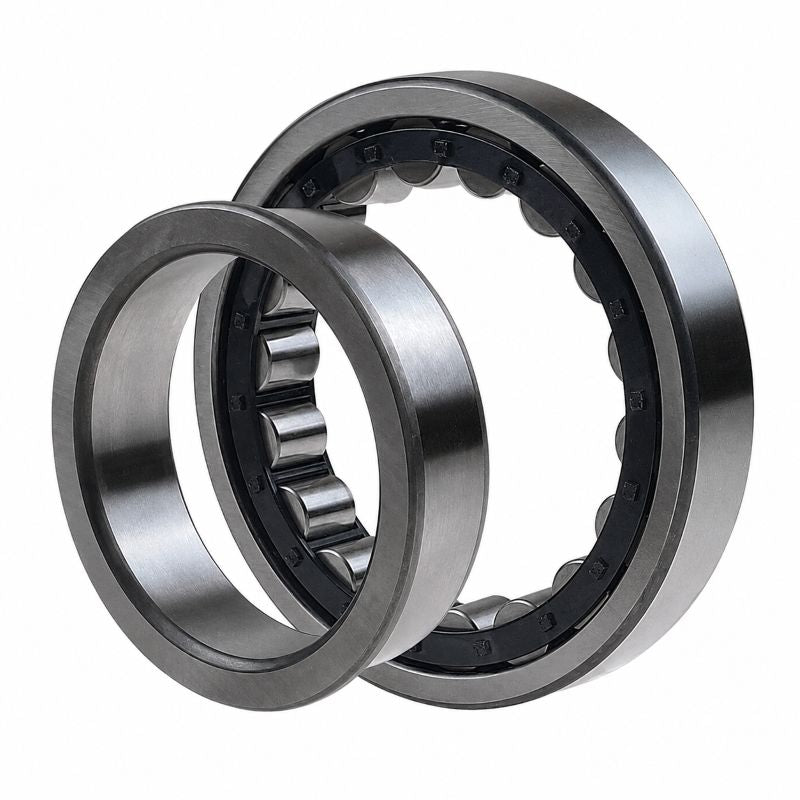

Codex NJ309 Single Row Cylindrical Roller Bearing 45x100x25mm
- Regular price
- €65,55 ex VAT
- Sale price
- €65,55
- Regular price
-
Not in stock
Quantity Price Breaks
10
€58,34
19
€55,06
29
€54,41
39
€53,75
49
€53,10
74
€52,44
99
€49,16
199
€48,51
249
€47,85
499
€47,20
999
€45,89
SKU:
NJ309-CDX
Codex NJ309 Single Row Cylindrical Roller Bearing 45x100x25mm
- Regular price
- €65,55 ex VAT
- Sale price
- €65,55
- Regular price
-
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
Technical
| d | = | 45mm |
| D | = | 100mm |
| B | = | 25mm |
| Dynamic load C | = | 112 kN |
| Static load Co | = | 100 kN |
| Fatigue load limit Pu | = | 12.9 kN |
| Reference speed | = | 7500 rpm |
| Limiting speed | = | 8500 rpm |
| Weight | = | 0.92 kg |
| Cage options | = | J.M.ML |
| d1 | = | 64.4mm |
| D1 | = | 83.8mm |
| F, E | = | 58.5mm |
| r1r2 min | = | 1.5mm |
| r3r4 min | = | 1.5mm |
| s | = | 1.7mm |
| da min | = | 54mm |
| da max | = | 56mm |
| db min | = | 67mm |
| Da max | = | 91mm |
| ra max | = | 1.5mm |
| rb max | = | 1.5mm |
| kr | = | 0.15 |
| Angle ring | = | HJ309EC |
| Angle ring weight | = | 0.11kg |
| B1 | = | 7mm |
| B2 | = | 11.5mm |
