SKU: NJ304-CDX

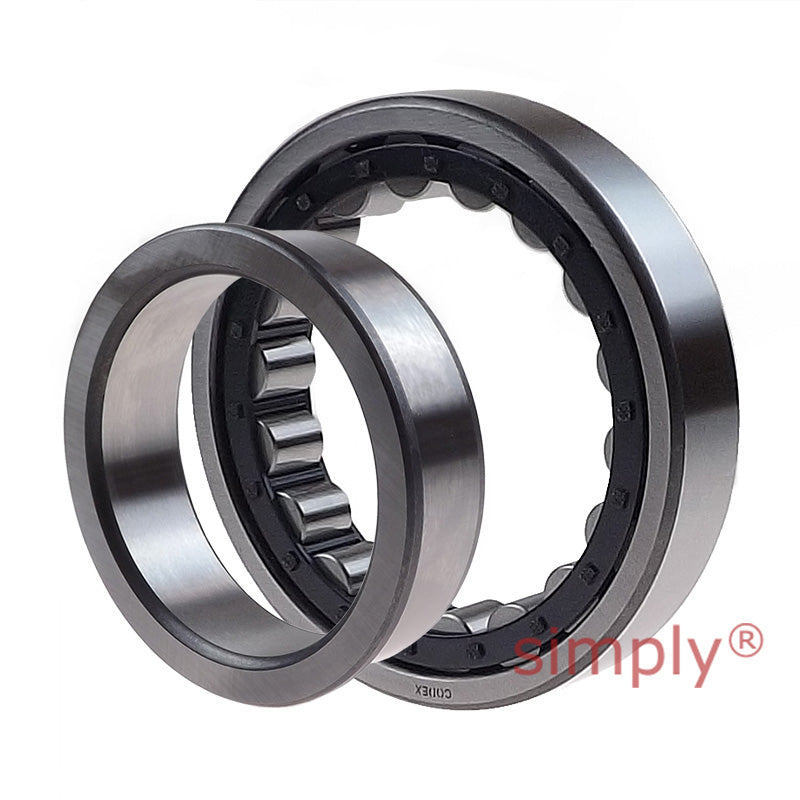

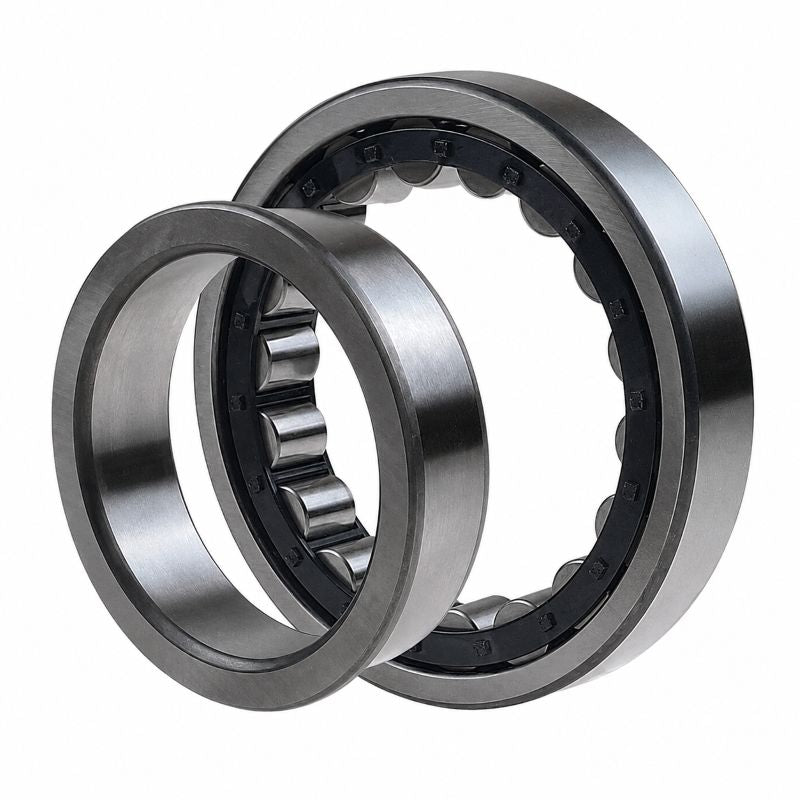

Codex NJ304 Single Row Cylindrical Roller Bearing 20x52x15mm
- Regular price
- €26,95 ex VAT
- Sale price
- €26,95
- Regular price
-
In stock
Quantity Price Breaks
10
€23,99
19
€22,64
29
€22,37
39
€22,10
49
€21,83
74
€21,56
99
€20,21
199
€19,94
249
€19,67
499
€19,40
999
€18,87
SKU:
NJ304-CDX
Codex NJ304 Single Row Cylindrical Roller Bearing 20x52x15mm
- Regular price
- €26,95 ex VAT
- Sale price
- €26,95
- Regular price
-
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
Technical
| d | = | 20mm |
| D | = | 52mm |
| B | = | 15mm |
| Dynamic load C | = | 35.5 kN |
| Static load Co | = | 26 kN |
| Fatigue load limit Pu | = | 3.25 kN |
| Reference speed | = | 15000 rpm |
| Limiting speed | = | 18000 rpm |
| Weight | = | 0.15 kg |
| d1 | = | 31.2mm |
| D1 | = | 42.4mm |
| F, E | = | 27.5mm |
| r1r2 min | = | 1.1mm |
| r3r4 min | = | 0.6mm |
| s | = | 0.9mm |
| da min | = | 27mm |
| da max | = | 29mm |
| db min | = | 33mm |
| Da max | = | 45mm |
| ra max | = | 1mm |
| rb max | = | 0.6mm |
| kr | = | 0.15 |
| Angle ring | = | HJ304EC |
| Angle ring weight | = | 0.017kg |
| B1 | = | 4mm |
| B2 | = | 6.5mm |
