SKU: NJ2314-CDX

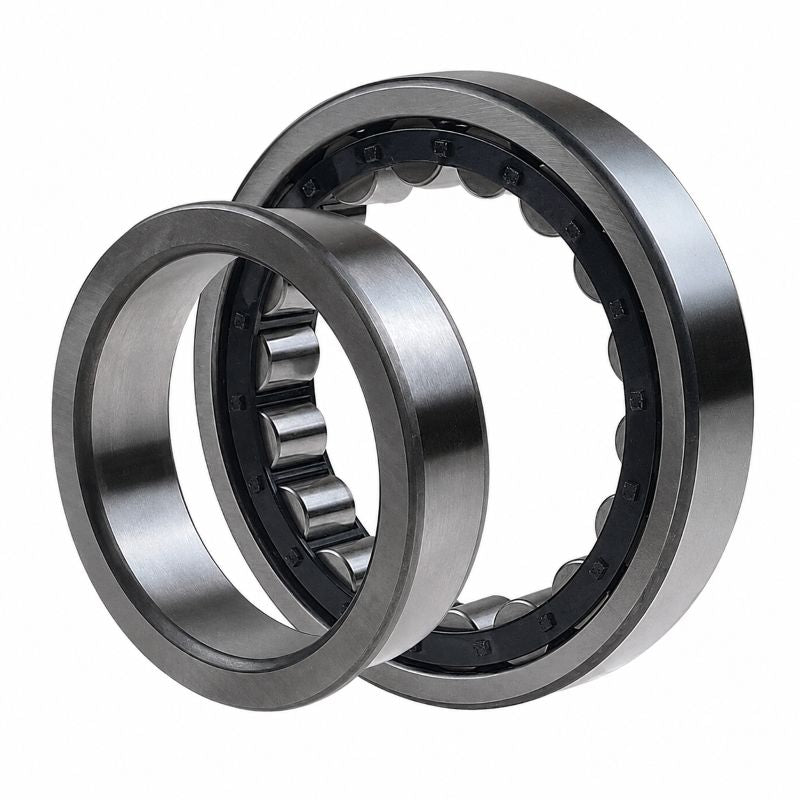

Codex NJ2314 Single Row Cylindrical Roller Bearing 70x150x51mm
- Regular price
- €209,59 ex VAT
- Sale price
- €209,59
- Regular price
-
In stock
Quantity Price Breaks
10
€186,54
19
€176,06
29
€173,96
39
€171,86
49
€169,77
74
€167,67
99
€157,19
199
€155,10
249
€153,00
499
€150,90
999
€146,71
SKU:
NJ2314-CDX
Codex NJ2314 Single Row Cylindrical Roller Bearing 70x150x51mm
- Regular price
- €209,59 ex VAT
- Sale price
- €209,59
- Regular price
-
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
Technical
| d | = | 70mm |
| D | = | 150mm |
| B | = | 51mm |
| Dynamic load C | = | 315 kN |
| Static load Co | = | 325 kN |
| Fatigue load limit Pu | = | 41.5 kN |
| Reference speed | = | 4800 rpm |
| Limiting speed | = | 5600 rpm |
| Weight | = | 4 kg |
| Cage options | = | ML |
| d1 | = | 97.3mm |
| D1 | = | 127mm |
| F, E | = | 89mm |
| r1r2 min | = | 2.1mm |
| r3r4 min | = | 2.1mm |
| s | = | 4.8mm |
| da min | = | 82mm |
| da max | = | 86mm |
| db min | = | 100mm |
| Da max | = | 138mm |
| ra max | = | 2mm |
| rb max | = | 2mm |
| kr | = | 0.25 |
| Angle ring | = | HJ2314EC |
| Angle ring weight | = | 0.34kg |
| B1 | = | 10mm |
| B2 | = | 18.5mm |
