SKU: NJ2310-EU

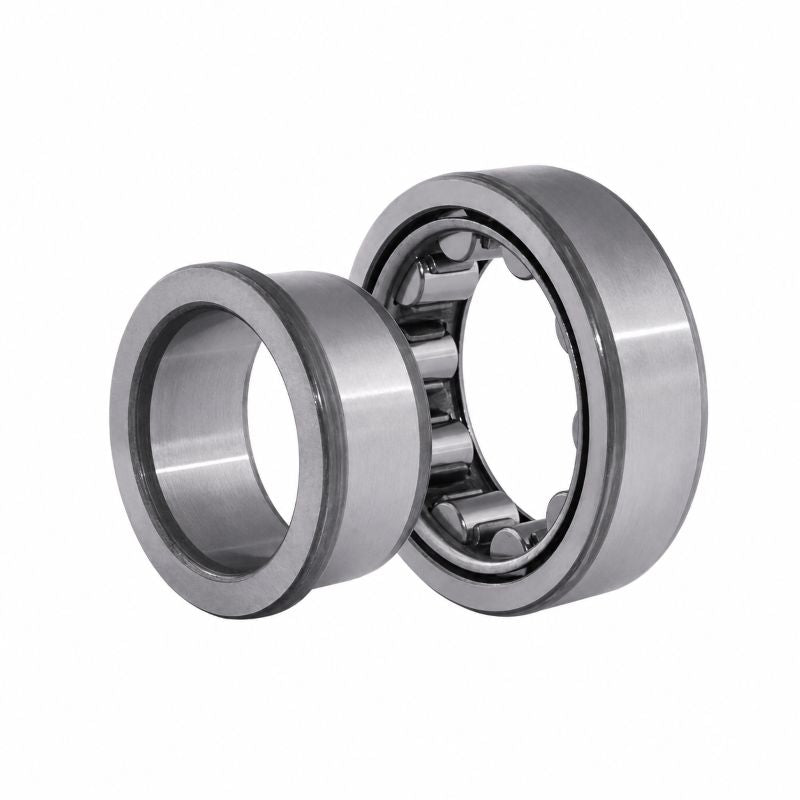

NJ2310 Budget Single Row Cylindrical Roller Bearing 50x110x40mm
NJ2310 Budget Single Row Cylindrical Roller Bearing 50x110x40mm
Regular price
€90,35
ex VAT
Regular price
Sale price
€90,35
ex VAT
In stock
Price Break
10+
€68,67
19+
€64,81
29+
€64,04
39+
€63,27
49+
€62,50
74+
€61,72
99+
€57,87
199+
€57,09
249+
€56,32
499+
€55,55
999+
€54,01
Quantity
Couldn't load pickup availability
Description
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 110mm
- Width:
- 40mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 50mm |
|---|---|
| D | 110mm |
| B | 40mm |
| Dynamic load C | 186 kN |
| Static load Co | 186 kN |
| Fatigue load limit Pu | 24.5 kN |
| Reference speed | 6700 rpm |
| Limiting speed | 8000 rpm |
| Weight | 1.77 kg |
| Cage options | ML |
| d1 | 71.2mm |
| D1 | 92.1mm |
| F, E | 65mm |
| r1r2 min | 2mm |
| r3r4 min | 2mm |
| s | 3.4mm |
| da min | 61mm |
| da max | 63mm |
| db min | 73mm |
| Da max | 99mm |
| ra max | 2mm |
| rb max | 2mm |
| kr | 0.25 |
