SKU: NJ2216-CDX

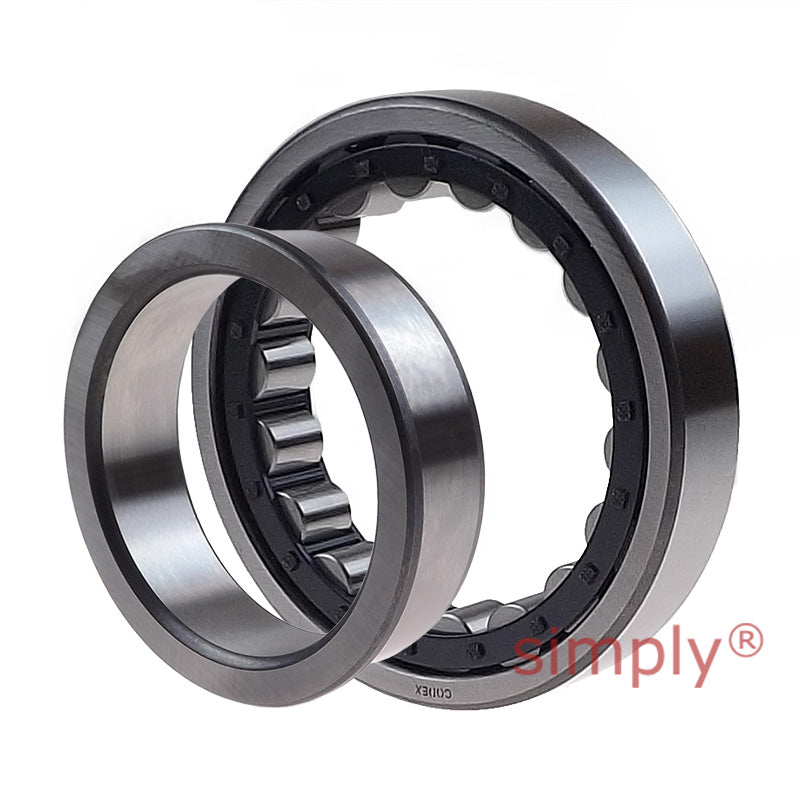

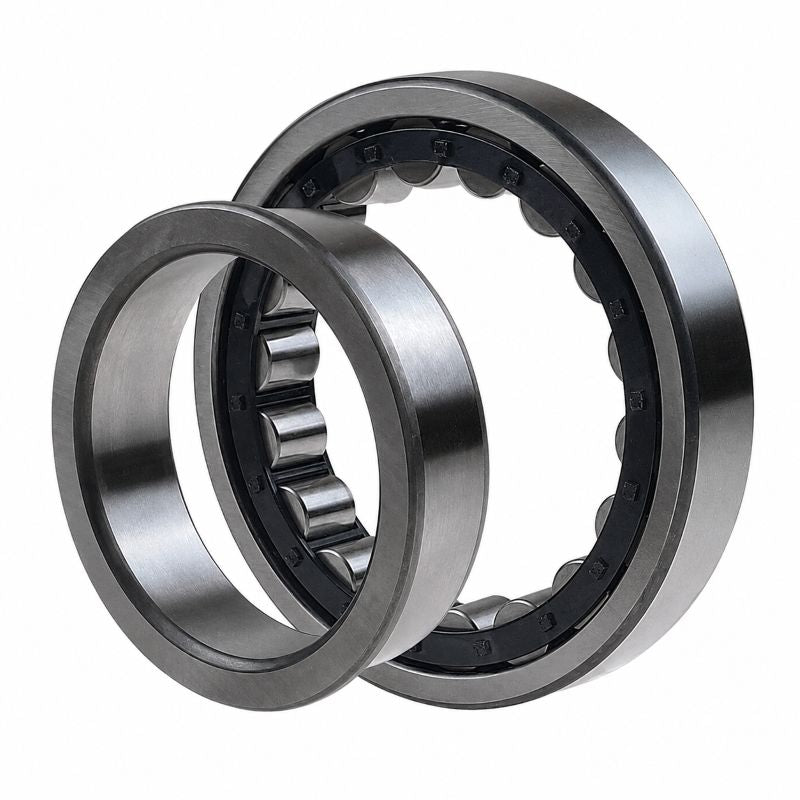

Codex NJ2216 Single Row Cylindrical Roller Bearing 80x140x33mm
- Regular price
- €144,41 ex VAT
- Sale price
- €144,41
- Regular price
-
In stock
Quantity Price Breaks
10
€128,52
19
€121,30
29
€119,86
39
€118,42
49
€116,97
74
€115,53
99
€108,31
199
€106,86
249
€105,42
499
€103,98
999
€101,09
SKU:
NJ2216-CDX
Codex NJ2216 Single Row Cylindrical Roller Bearing 80x140x33mm
- Regular price
- €144,41 ex VAT
- Sale price
- €144,41
- Regular price
-
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
Technical
| d | = | 80mm |
| D | = | 140mm |
| B | = | 33mm |
| Dynamic load C | = | 212 kN |
| Static load Co | = | 245 kN |
| Fatigue load limit Pu | = | 31 kN |
| Reference speed | = | 5300 rpm |
| Limiting speed | = | 5600 rpm |
| Weight | = | 2.05 kg |
| Cage options | = | J.M.ML |
| d1 | = | 101mm |
| D1 | = | 123mm |
| F, E | = | 95.3mm |
| r1r2 min | = | 2mm |
| r3r4 min | = | 2mm |
| s | = | 1.4mm |
| da min | = | 91mm |
| da max | = | 93mm |
| db min | = | 104mm |
| Da max | = | 129mm |
| ra max | = | 2mm |
| rb max | = | 2mm |
| kr | = | 0.2 |
| Angle ring | = | HJ216EC |
| Angle ring weight | = | 0.21kg |
| B1 | = | 8mm |
| B2 | = | 12.5mm |
