SKU: NJ2210-CDX

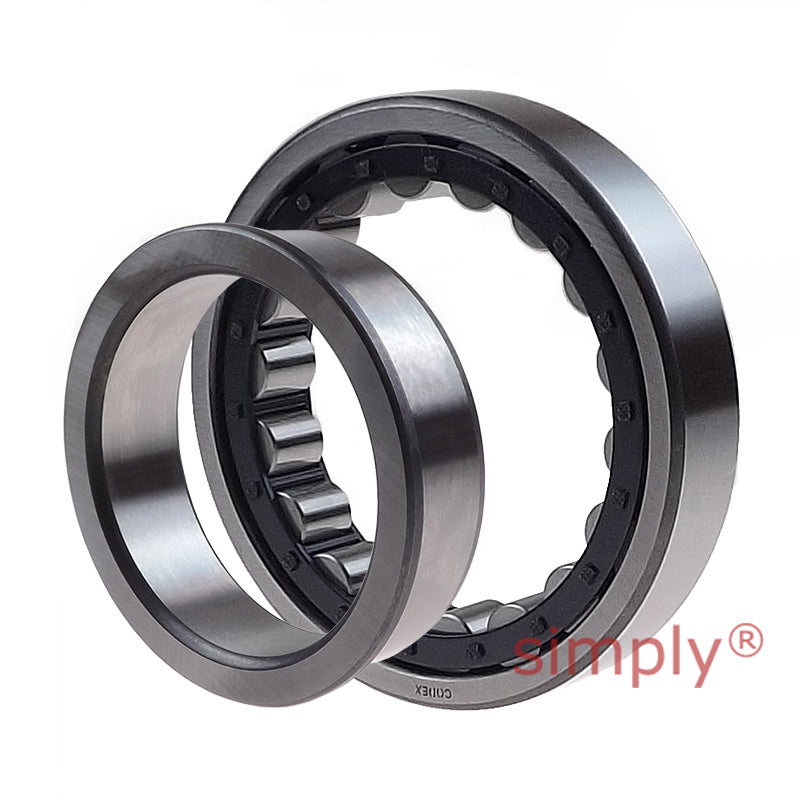

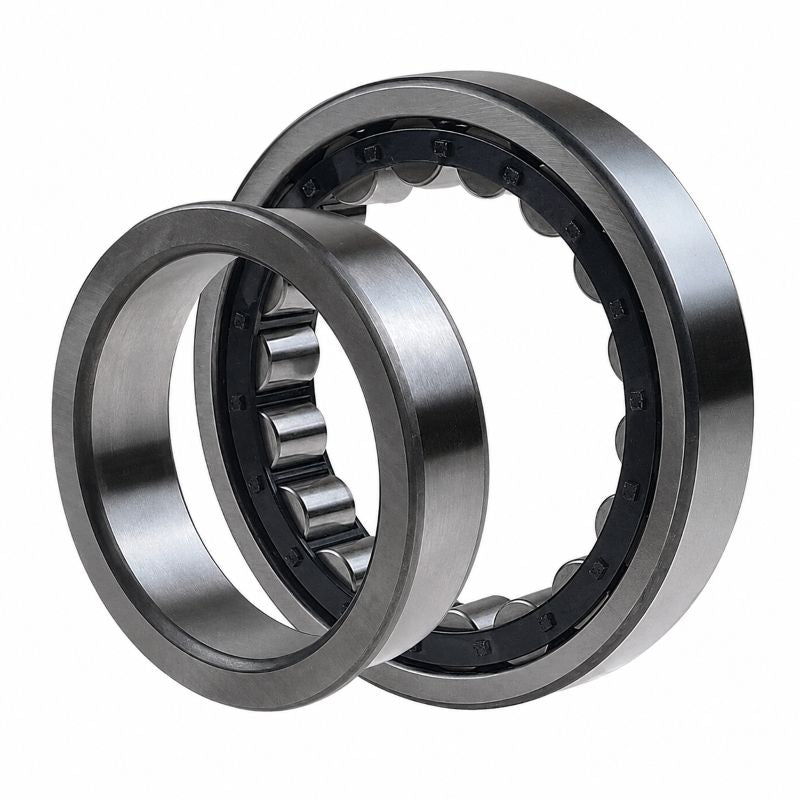

Codex NJ2210 Single Row Cylindrical Roller Bearing 50x90x23mm
- Regular price
- €63,77 ex VAT
- Sale price
- €63,77
- Regular price
-
In stock
Quantity Price Breaks
10
€56,76
19
€53,57
29
€52,93
39
€52,29
49
€51,65
74
€51,02
99
€47,83
199
€47,19
249
€46,55
499
€45,91
999
€44,64
SKU:
NJ2210-CDX
Codex NJ2210 Single Row Cylindrical Roller Bearing 50x90x23mm
- Regular price
- €63,77 ex VAT
- Sale price
- €63,77
- Regular price
-
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
Technical
| d | = | 50mm |
| D | = | 90mm |
| B | = | 23mm |
| Dynamic load C | = | 90 kN |
| Static load Co | = | 88 kN |
| Fatigue load limit Pu | = | 11.4 kN |
| Reference speed | = | 8500 rpm |
| Limiting speed | = | 9000 rpm |
| Weight | = | 0.57 kg |
| Cage options | = | J.M.ML |
| d1 | = | 64mm |
| D1 | = | 78mm |
| F, E | = | 59.5mm |
| r1r2 min | = | 1.1mm |
| r3r4 min | = | 1.1mm |
| s | = | 1.5mm |
| da min | = | 57mm |
| da max | = | 57mm |
| db min | = | 66mm |
| Da max | = | 83mm |
| ra max | = | 1mm |
| rb max | = | 1mm |
| kr | = | 0.2 |
