SKU: NJ219-EU

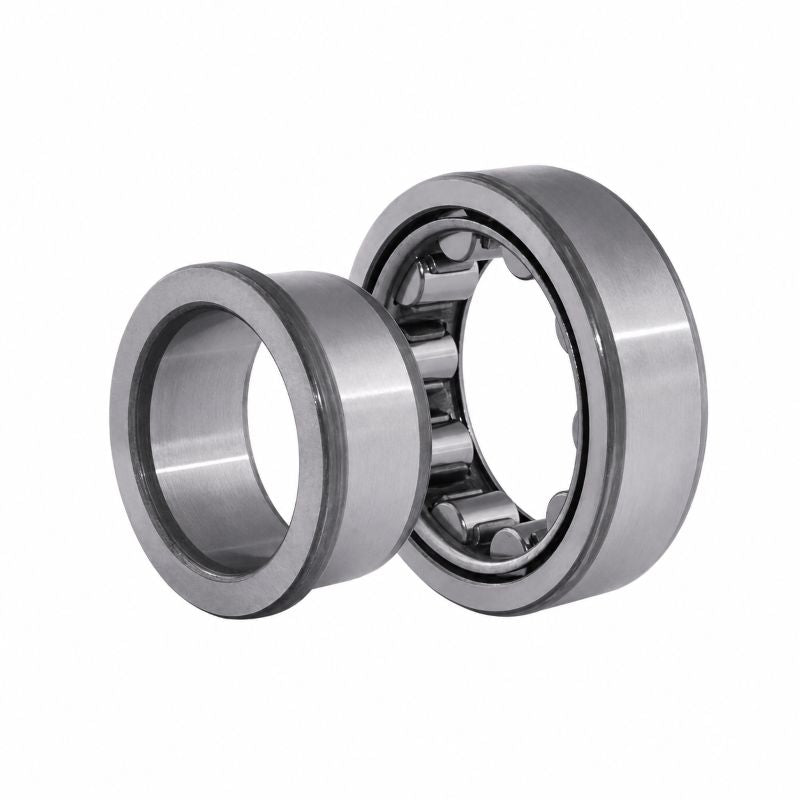

NJ219 Budget Single Row Cylindrical Roller Bearing 95x170x32mm
- Regular price
- €149,13 ex VAT
- Sale price
- €149,13
- Regular price
-
Not in stock
Quantity Price Breaks
10
€132,73
19
€125,27
29
€123,78
39
€122,29
49
€120,80
74
€119,30
99
€111,85
199
€110,36
249
€108,86
499
€107,37
999
€104,39
SKU:
NJ219-EU
NJ219 Budget Single Row Cylindrical Roller Bearing 95x170x32mm
- Regular price
- €149,13 ex VAT
- Sale price
- €149,13
- Regular price
-
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
Technical
| d | = | 95mm |
| D | = | 170mm |
| B | = | 32mm |
| Dynamic load C | = | 255 kN |
| Static load Co | = | 265 kN |
| Fatigue load limit Pu | = | 32.5 kN |
| Reference speed | = | 4300 rpm |
| Limiting speed | = | 4800 rpm |
| Weight | = | 2.9 kg |
| Cage options | = | J.M.ML |
| d1 | = | 120mm |
| D1 | = | 149mm |
| F, E | = | 112.5mm |
| r1r2 min | = | 2.1mm |
| r3r4 min | = | 2.1mm |
| s | = | 1.7mm |
| da min | = | 107mm |
| da max | = | 110mm |
| db min | = | 123mm |
| Da max | = | 158mm |
| ra max | = | 2mm |
| rb max | = | 2mm |
| kr | = | 0.15 |
| Angle ring | = | HJ219EC |
| Angle ring weight | = | 0.33kg |
| B1 | = | 9mm |
| B2 | = | 14mm |
