SKU: NF.205.MB

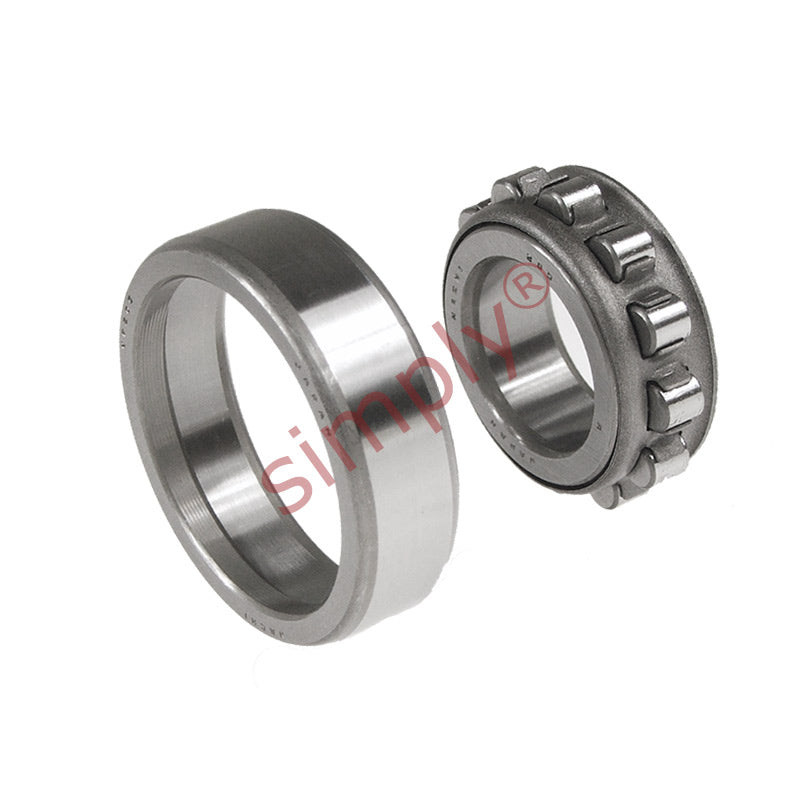

NF205 Major Brand Cylindrical Roller Bearing 25x52x15mm

Name: NF205 Major Brand Cylindrical Roller Bearing 25x52x15mm
Brand: Major Brand
SKU: NF.205.MB
Price: 42.86 EUR
Availability: InStock

€42,86 ex VAT

Sale Sold out

In stock

Price Break

10+ €32,57

19+ €30,74

29+ €30,37

39+ €30,01

49+ €29,64

74+ €29,28

99+ €27,45

199+ €27,08

249+ €26,72

499+ €26,35

999+ €25,62

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

NF and MRJA Series Single Row Cylindrical Roller Bearings: The outer ring of this type has one integral flange / shoulder, the inner raceway has a two flanges / shoulders around which the cage and rollers are assembled. The outer raceway shoulder permits the ease of assembly and limits axial location to one direction.
Benefits: Axial location, ease of assembly and fitting

Brand / Quality:: Major Brand - High Quality
Inside Diameter:: 25mm
Outside Diameter:: 52mm
Width:: 15mm
Seals / Shields:: None
Clearance:: * Standard

Technical

d	25mm
D	52mm
B	15mm
Ew	45mm
Fw	32mm
r1	1mm
0.6mm	Dynamic Load
17500N	Static Load
15700N	Speed in Grease
12000rpm	Speed in Oil
15000rpm	da min
31mm	db min
30mm	db max
31mm	dc
34mm	Da max
46mm	Db min
47mm	Db max
47mm	ra max
1mm	ra1 max
0.6mm	Weight
0.133kg	N/A
