SKU: NAO25x40x17-EU

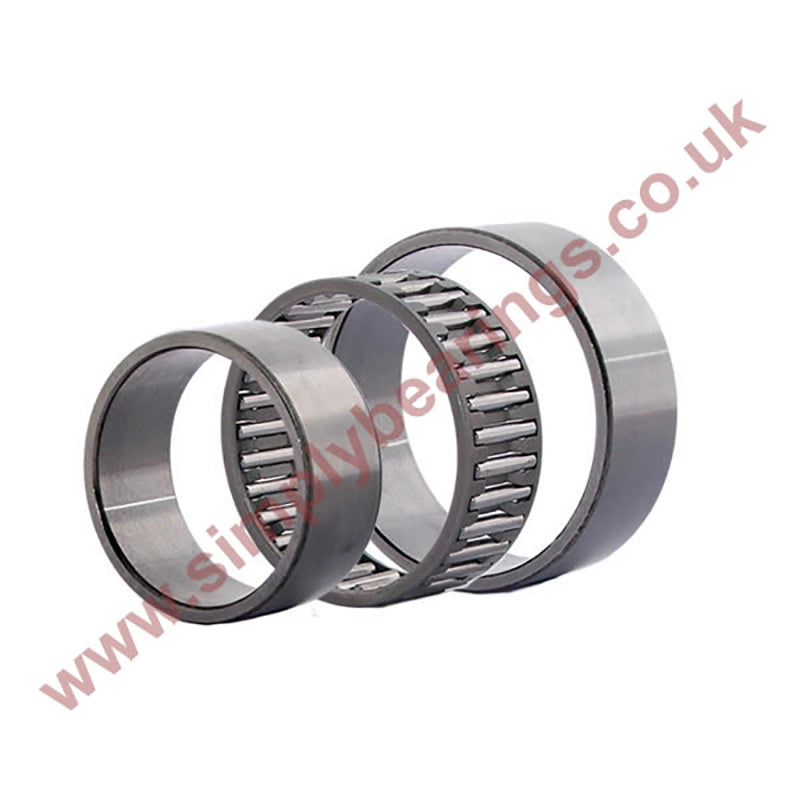

NAO25x40x17 Budget Needle Roller Bearing Without Flanges and With Shaft Sleeve
- Regular price
- €16,36 ex VAT
- Sale price
- €16,36
- Regular price
-
Not in stock
Quantity Price Breaks
10
€14,56
19
€13,74
29
€13,58
39
€13,42
49
€13,25
74
€13,09
99
€12,27
199
€12,11
249
€11,94
499
€11,78
999
€11,45
SKU:
NAO25x40x17-EU
NAO25x40x17 Budget Needle Roller Bearing Without Flanges and With Shaft Sleeve
- Regular price
- €16,36 ex VAT
- Sale price
- €16,36
- Regular price
-
Description
|
Budget Flange-less Needle Roller: The flange-less design permits separation of the supplied inner ring and the outer bearing to facilitate ease of mounting. Benefits: Separable, ease of mounting. |
Technical
| d | = | 25mm |
| D | = | 40mm |
| B | = | 17mm |
| Dynamic load C | = | 18700 N |
| Static load Co | = | 34000 N |
| Fatigue load limit Pu | = | 4050 N |
| Speed in grease | = | 8500 rpm |
| Speed in oil | = | 13000 rpm |
| E | = | 35mm |
| F | = | 30mm |
| r1r2 min | = | 0.3mm |
| S (axial disp) | = | 0.8mm |
| da | = | 34.4mm |
| db | = | 29.5mm |
| Da | = | 35.5mm |
| Db | = | 30.6mm |
| ra max | = | 0.3mm |
| Weight | = | 88 g |
