SKU: N313-E-TVP2

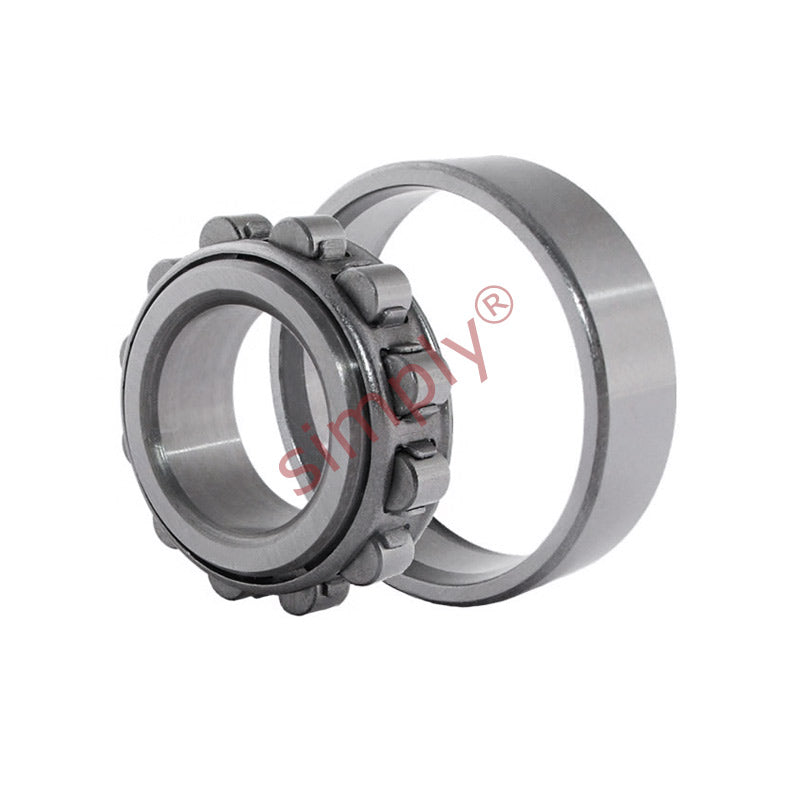

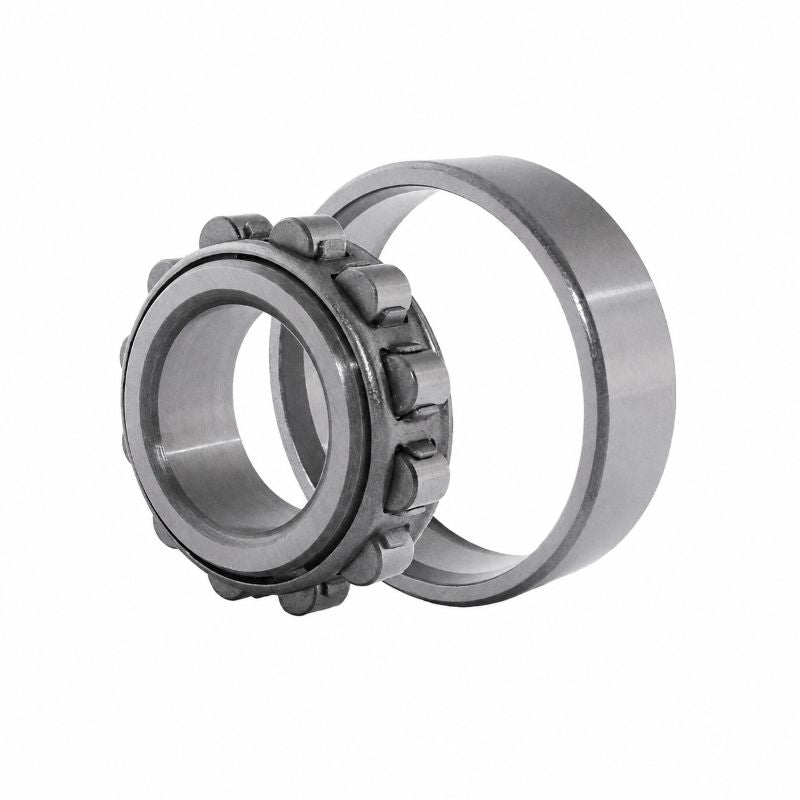

N313-E-TVP2 X-life Cylindrical Roller Bearing with Cage 65x140x33mm
- Regular price
- €166,96 ex VAT
- Sale price
- €166,96
- Regular price
-
Not in stock
Quantity Price Breaks
10
€148,59
19
€140,25
29
€138,58
39
€136,91
49
€135,24
74
€133,57
99
€125,22
199
€123,55
249
€121,88
499
€120,21
999
€116,87
SKU:
N313-E-TVP2
N313-E-TVP2 X-life Cylindrical Roller Bearing with Cage 65x140x33mm
- Regular price
- €166,96 ex VAT
- Sale price
- €166,96
- Regular price
-
Description
|
N Series Single Row Cylindrical Roller Bearings: The inner ring of this type has two integral flanges around which the rollers are assembled, the outer raceway has no flanges and is removable allowing ease of assembly and axial movements in either direction. Benefits: Axial location, ease of assembly and fitting |
Technical
| d | = | 65 |
| D | = | 140 |
| B | = | 33 |
| r min | = | 2.1 |
| r1 min | = | 2.1 |
| s | = | 1.4 |
| E | = | 124.5 |
| F | = | 82.5 |
| d1 | = | 90.5 |
| da min | = | 77 |
| Da max | = | 128 |
| Db min | = | 126 |
| Dc max | = | 123 |
| ra max | = | 2.1 |
| ra1 max | = | 2.1 |
| Dynamic load | = | 214000 N |
| Static load | = | 191000 N |
| Fatigue limit load | = | 32000 N |
| Limiting speed | = | 4800 rpm |
| Reference speed | = | 4900 rpm |
| Weight | = | 2.28 kg |
