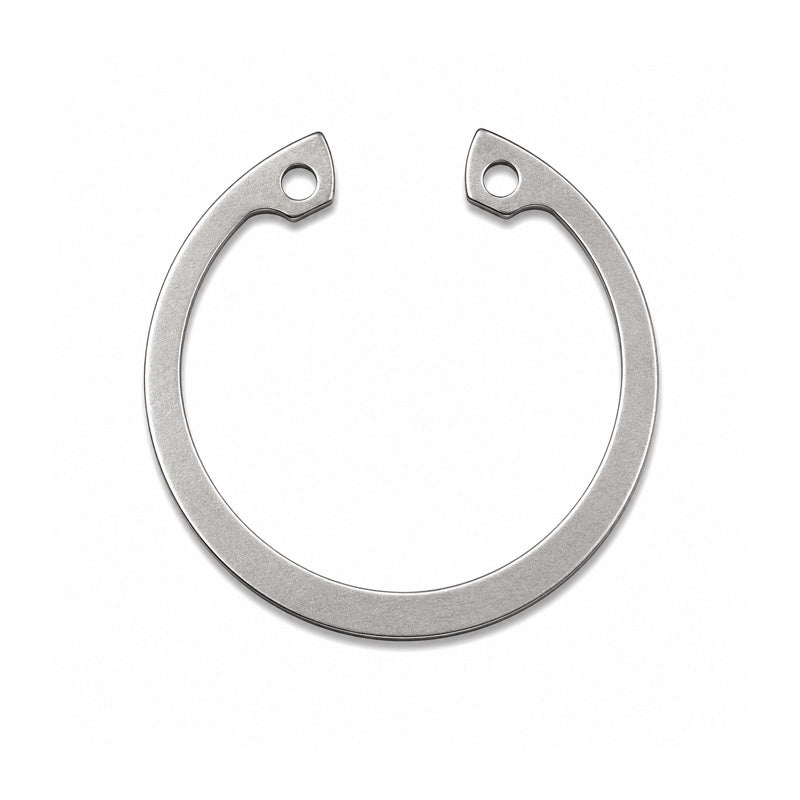

• Stainless Steel Internal Circlip for 2.62 inch Bore Diameter Un-Sprung Diameter 2.910 inch
1 1

SKU: N1300-262SS

Stainless Steel Internal Circlip for 2.62 inch Bore Diameter Un-Sprung Diameter 2.910 inch

Stainless Steel Internal Circlip for 2.62 inch Bore Diameter Un-Sprung Diameter 2.910 inch
€25,95 ex VAT
€25,95 ex VAT
Sale Sold out

Equivalent to: N1300-262SS

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Simply Circlips - Economy Quality
Bore:
66.68mm = 2.625 (2-5/8) inch
Outside Diameter:
73.91mm = 2.91 inch
Material:
Stainless Steel
Thickness:
2.36mm = 0.093 inch
Groove Diameter:
70.64mm = 2.781 (2-25/32) inch
Technical
--- Clip Dimensions
Bore Size (B) 2.625 inch
Ring Thickness (t) 0.093 inch
Thickness tolerance (t) 0.093 inch
Unstressed diameter (D) 2.910 inch
Unstressed diameter tolerance (D) +0.040 / -0.030 inch
Lug (L) 0.268 inch
Beam (b) 0.226 inch
h 0.108 inch
--- Groove Requirements
Groove diameter (G) 2.781 inch
Groove tolerance (G) 0.006 inch
Minimum Groove Width (W) 0.103 inch
Groove Width Tolerance (W) +0.005 / -0.000 inch
Groove depth (d) 0.078 inch
