SKU: N1300-031SS

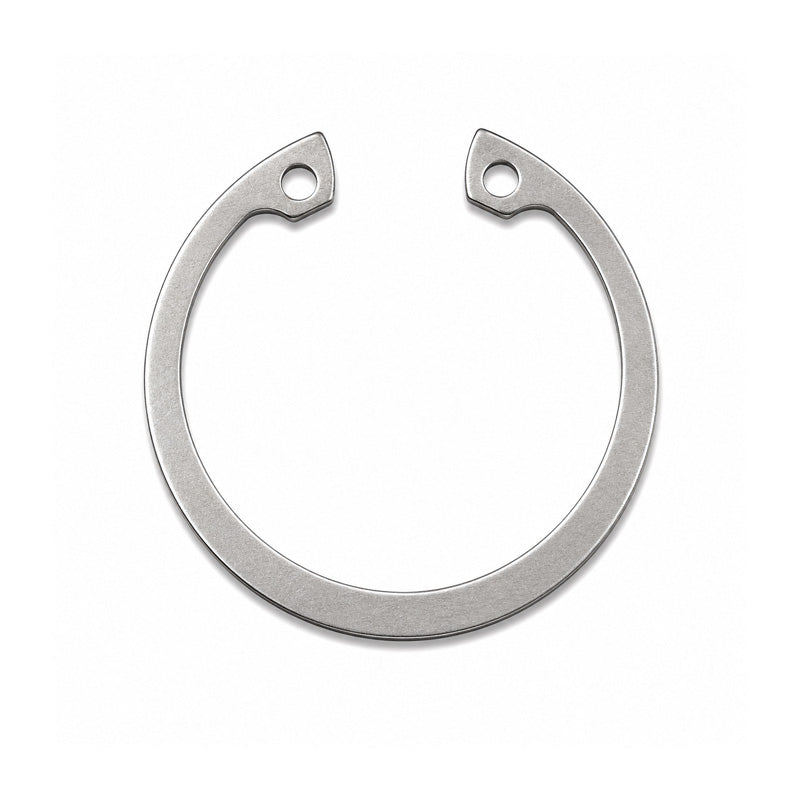

Stainless Steel Internal Circlip for 0.31 inch Bore Diameter Un-Sprung Diameter 0.346 inch
Stainless Steel Internal Circlip for 0.31 inch Bore Diameter Un-Sprung Diameter 0.346 inch
Regular price
€1,67
ex VAT
Regular price
Sale price
€1,67
ex VAT
Equivalent to: N1300-031SS
In stock
Price Break
5+
€1,00
10+
€0,86
20+
€0,79
50+
€0,72
100+
€0,57
500+
€0,50
1000+
€0,43
Quantity
Couldn't load pickup availability
Description
Description
|
Stainless Steel Imperial Internal Circlips: The most common form of axially fitted circlips for bores with grooves. The circlip has a large free diameter and gap width, consequently it fits more tightly into the groove and provides higher and more uniform thrust load capacity. Lugs with holes are provided for rapid fitting or removal with circlip pliers. Material: Stainless Spring Steel Benefits: Cost effective replacement, durable, removable, corrosion resistant |
- Brand / Quality:
- Simply Circlips - Economy Quality
- Bore:
- 7.93mm = 0.312 (5/16) inch
- Outside Diameter:
- 8.79mm = 0.346 inch
- Material:
- Stainless Steel
- Thickness:
- 0.38mm = 0.015 inch
- Groove Diameter:
- 8.38mm = 0.33 inch
Technical
Technical
| --- | Clip Dimensions |
|---|---|
| Bore Size (B) | 0.312 inch |
| Ring Thickness (t) | 0.015 inch |
| Thickness tolerance (t) | 0.015 inch |
| Unstressed diameter (D) | 0.346 inch |
| Unstressed diameter tolerance (D) | +0.010 / -0.005 inch |
| Lug (L) | 0.069 inch |
| Beam (b) | 0.033 inch |
| h | 0.029 inch |
| --- | Groove Requirements |
| Groove diameter (G) | 0.330 inch |
| Groove tolerance (G) | 0.001 inch |
| Minimum Groove Width (W) | 0.018 inch |
| Groove Width Tolerance (W) | +0.002 / -0.000 inch |
| Groove depth (d) | 0.009 inch |
