SKU: MSFT55-RHP

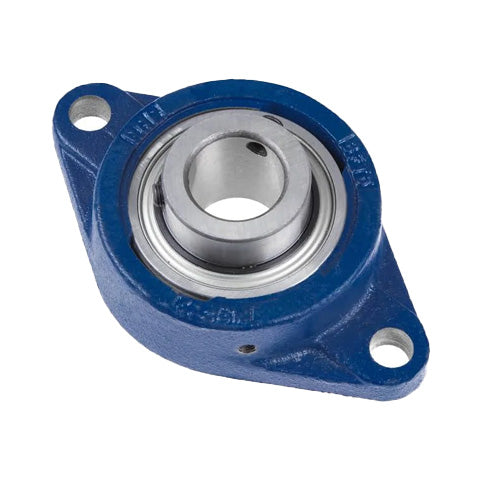

RHP MSFT55 Heavy Duty Two Bolt Oval Cast Iron Flange Housing 55mm Bore Insert
RHP MSFT55 Heavy Duty Two Bolt Oval Cast Iron Flange Housing 55mm Bore Insert
Regular price
€180,89
ex VAT
Regular price
Sale price
€180,89
ex VAT
In stock
Price Break
10+
€137,47
20+
€129,75
30+
€128,20
40+
€126,66
50+
€125,11
75+
€123,57
100+
€115,85
200+
€114,30
250+
€112,76
500+
€111,21
1000+
€108,12
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP MSFT Series Heavy Duty 2 Bolt Oval Cast Iron Housings: Bearing units supplied with a full width sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has two grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 55mm
- Style:
- MSFT
- Bolt Hole Centres:
- 202mm
Technical
Technical
| Bore | 55mm |
|---|---|
| L | 138.1mm |
| H | 235mm |
| J | 202mm |
| G | 16mm |
| A | 47.6mm |
| A1 | 73.69mm |
| A4 | 17.5mm |
| B | 65.07mm |
| s | 25.45 |
| d1 | 75.34mm |
| Dynamic load | 48000 N |
| Static load | 33000 N |
| Rec max speed | 2800 rpm |
| Weight | 4.3 kg |
| Insert | <a href="advanced_search_result.php?keywords=1060-55G+insonly">1060-55G Click Here</a> |
| Casting group | 7 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
