SKU: MSFT50-RHP

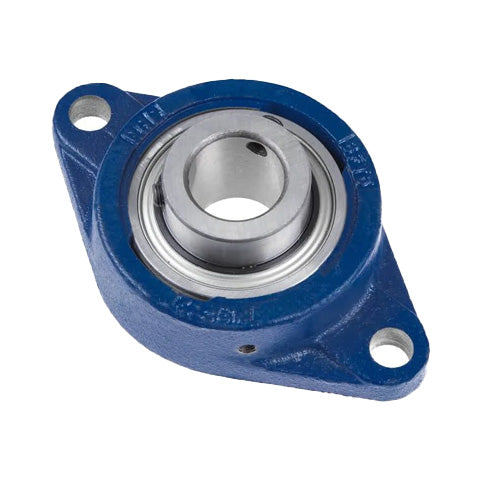

RHP MSFT50 Heavy Duty Two Bolt Oval Cast Iron Flange Housing 50mm Bore Insert
RHP MSFT50 Heavy Duty Two Bolt Oval Cast Iron Flange Housing 50mm Bore Insert
Regular price
€146,39
ex VAT
Regular price
Sale price
€146,39
ex VAT
In stock
Price Break
10+
€111,25
20+
€105,00
30+
€103,75
40+
€102,50
50+
€101,25
75+
€100,00
100+
€93,75
200+
€92,50
250+
€91,25
500+
€90,00
1000+
€87,50
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP MSFT Series Heavy Duty 2 Bolt Oval Cast Iron Housings: Bearing units supplied with a full width sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has two grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 50mm
- Style:
- MSFT
- Bolt Hole Centres:
- 184mm
Technical
Technical
| Bore | 50mm |
|---|---|
| L | 127mm |
| H | 215.9mm |
| J | 184mm |
| G | 16mm |
| A | 43.7mm |
| A1 | 64.31mm |
| A4 | 17.5mm |
| B | 55.55mm |
| s | 22.28 |
| d1 | 68.81mm |
| Dynamic load | 43500 N |
| Static load | 29200 N |
| Rec max speed | 3100 rpm |
| Weight | 3.5 kg |
| Insert | <a href="advanced_search_result.php?keywords=1055-50G+insonly">1055-50G Click Here</a> |
| Casting group | 6 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
