SKU: MSFT25TS-RHP

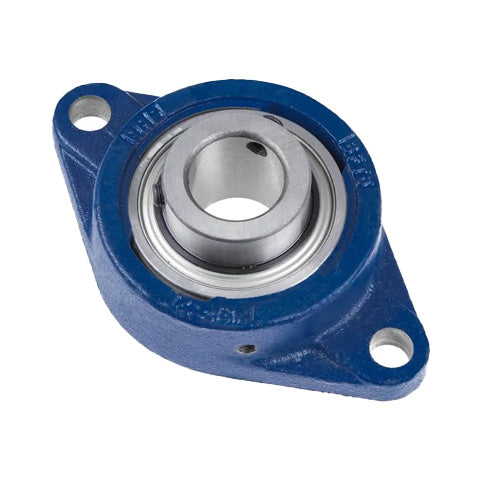

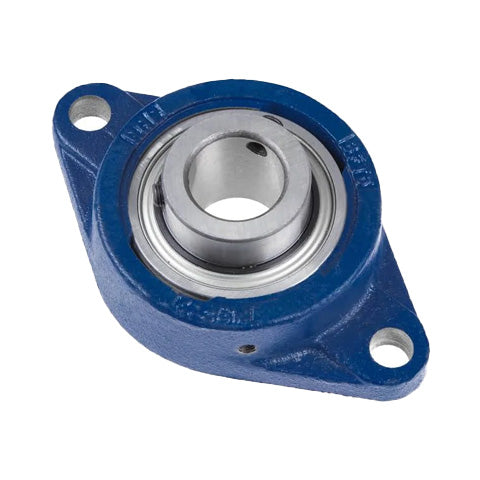

RHP MSFT25TS Heavy Duty Two Bolt Oval Cast Iron Flange Housing 25mm Bore Triple Lip Seal Insert
RHP MSFT25TS Heavy Duty Two Bolt Oval Cast Iron Flange Housing 25mm Bore Triple Lip Seal Insert
Regular price
€88,41
ex VAT
Regular price
Sale price
€88,41
ex VAT
In stock
Price Break
10+
€67,18
20+
€63,41
30+
€62,65
40+
€61,90
50+
€61,14
75+
€60,39
100+
€56,62
200+
€55,86
250+
€55,11
500+
€54,35
1000+
€52,84
Quantity
Couldn't load pickup availability
Share this product
Description
Description
RHP MSFTTS Series Heavy Duty 2 Bolt Oval Cast Iron Triple Seal Housings: Bearing units supplied with a full-width triple-sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has two grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost-effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert, heavy-duty
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 25mm
- Style:
- MSFT
- Bolt Hole Centres:
- 116.5mm

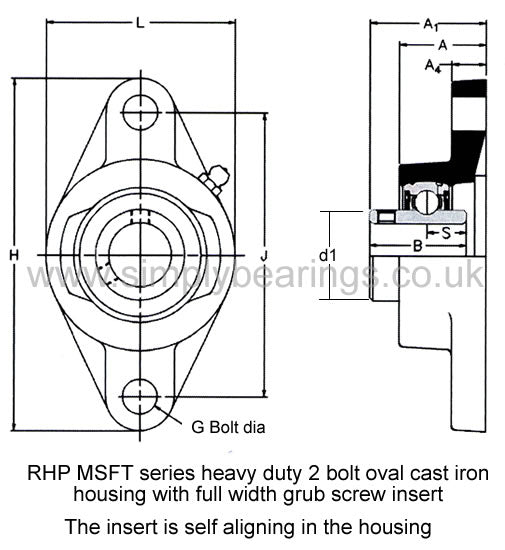

Technical
Technical
| Bore | 25mm |
|---|---|
| L | 82.6mm |
| H | 141.3mm |
| J | 116.5mm |
| G | 10mm |
| A | 29.8mm |
| A1 | 42.21mm |
| A4 | 12.7mm |
| B | 39.1mm |
| s | 15.93 |
| d1 | 40mm |
| Dynamic load | 19500 N |
| Static load | 11300 N |
| Rec max speed | 5300 rpm |
| Weight | 1.1 kg |
| Insert | <a href="advanced_search_result.php?keywords=1030-25G+insonly">1030-25G Click Here</a> |
| Casting group | 1 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
