SKU: MSFT1055-50K-RHP

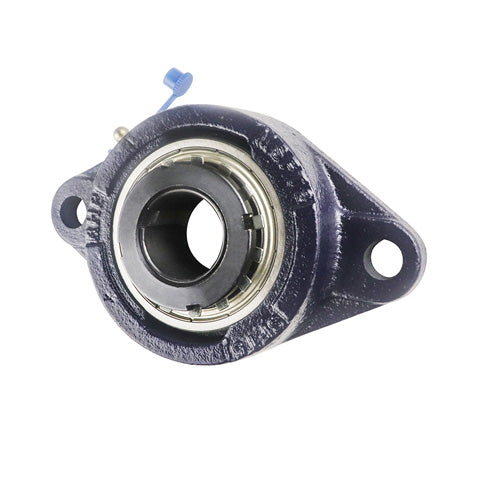

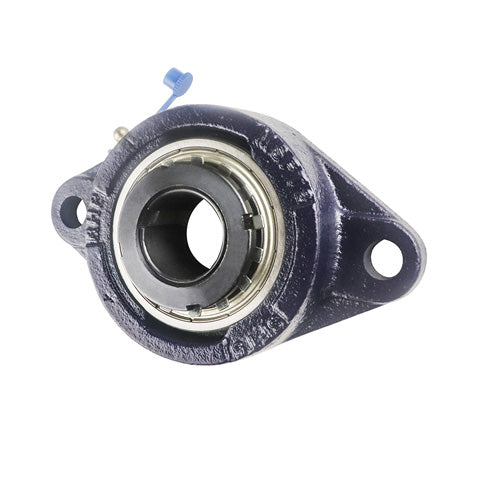

RHP MSFT1055-50K Two Bolt Oval Cast Iron Flange Housing 50mm Bore Insert
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
RHP MSFT Series Heavy Duty 2 Bolt Oval Cast Iron Housings: Bearing units supplied with a full width sealed heavy duty bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing has a taper bore to accommodate the taper sleeve which is tightened using a lock nut to secure to the shaft after installation, the locknut is subsequently secured with the tab washer. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 50mm
- Style:
- MSFT
- Bolt Hole Centres:
- 184mm
Technical
| Bore | 50mm |
|---|---|
| L | 127mm |
| H | 215.9mm |
| J | 184mm |
| G | 16mm |
| A | 43.7mm |
| A4 | 17.5mm |
| A5 | 55.5mm |
| B5 | 45mm |
| s | -mm |
| d4 | 75mm |
| Dynamic load | 43500 N |
| Static load | 29200 N |
| Rec max speed | 3100 rpm |
| Weight | 3.5 kg |
| Insert | <a href="advanced_search_result.php?keywords=1055K+insonly">1055K Click Here</a> |
| Casting group | 6 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
