SKU: MSFT1050-45K-RHP

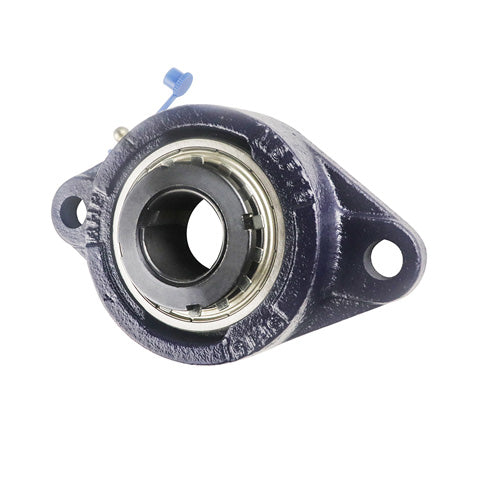

RHP MSFT1050-45K Two Bolt Oval Cast Iron Flange Housing 45mm Bore Insert
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
RHP MSFT Series Heavy Duty 2 Bolt Oval Cast Iron Housings: Bearing units supplied with a full width sealed heavy duty bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing has a taper bore to accommodate the taper sleeve which is tightened using a lock nut to secure to the shaft after installation, the locknut is subsequently secured with the tab washer. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 45mm
- Style:
- MSFT
- Bolt Hole Centres:
- 157mm
Technical
| Bore | 45mm |
|---|---|
| L | 115.9mm |
| H | 188.9mm |
| J | 157mm |
| G | 16mm |
| A | 39.7mm |
| A4 | 14.3mm |
| A5 | 52mm |
| B5 | 42mm |
| s | -mm |
| d4 | 70mm |
| Dynamic load | 27000 N |
| Static load | 23200 N |
| Rec max speed | 3400 rpm |
| Weight | 2.5 kg |
| Insert | <a href="advanced_search_result.php?keywords=1050K+insonly">1050K Click Here</a> |
| Casting group | 5 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
