SKU: MSFT1040-1.1/4K-RHP

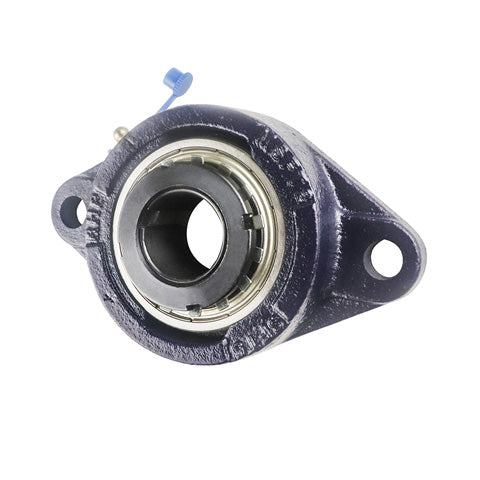

RHP MSFT1040-1-1/4K Two Bolt Oval Cast Iron Flange Housing 1-1/4 inch Bore Insert
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
RHP MSFT Series Heavy Duty 2 Bolt Oval Cast Iron Housings: Bearing units supplied with a full width sealed heavy duty bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing has a taper bore to accommodate the taper sleeve which is tightened using a lock nut to secure to the shaft after installation, the locknut is subsequently secured with the tab washer. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Style:
- MSFT
- Bolt Hole Centres:
- 143.51mm = 5.65 inch
Technical
| Bore | 1-1/4 inch |
|---|---|
| L | 4 inch |
| H | 6.748 inch |
| J | 5.65 inch |
| G | 0.5 inch |
| A | 1.374 inch |
| A4 | 0.5 inch |
| A5 | 1.772 inch |
| B5 | 1.417 inch |
| s | - inch |
| d4 | 2.283 inch |
| Dynamic load | 32500 N |
| Static load | 19900 N |
| Rec max speed | 4000 rpm |
| Weight | 1.9 kg |
| Insert | <a href="advanced_search_result.php?keywords=1040K+insonly">1040K Click Here</a> |
| Casting group | 3 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
