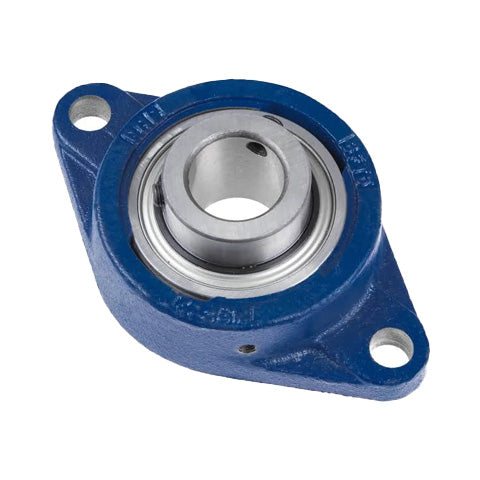

RHP MSFT1-1/2 Heavy Duty Two Bolt Oval Cast Iron Flange Housing 1-1/2 inch Bore Insert
RHP MSFT1-1/2 Heavy Duty Two Bolt Oval Cast Iron Flange Housing 1-1/2 inch Bore Insert
Regular price
€119,92
ex VAT
Regular price
Sale price
€119,92
ex VAT
In stock
Price Break
10+
€91,14
20+
€86,02
30+
€84,99
40+
€83,97
50+
€82,94
75+
€81,92
100+
€76,80
200+
€75,78
250+
€74,75
500+
€73,73
1000+
€71,68
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP MSFT Series Heavy Duty 2 Bolt Oval Cast Iron Housings: Bearing units supplied with a full width sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has two grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Style:
- MSFT
- Bolt Hole Centres:
- 148.49mm = 5.846 inch
Technical
Technical
| Bore | 1-1/2 inch |
|---|---|
| L | 4.374 inch |
| H | 7.063 inch |
| J | 5.846 inch |
| G | 0.625 inch |
| A | 1.39 inch |
| A1 | 2.133 inch |
| A4 | 0.563 inch |
| B | 1.938 inch |
| s | 0.752 |
| d1 | 2.256 inch |
| Dynamic load | 32500 N |
| Static load | 20500 N |
| Rec max speed | 3700 rpm |
| Weight | 2.2 kg |
| Insert | <a href="advanced_search_result.php?keywords=1045-1-1/2G+insonly">1045-1-1/2G Click Here</a> |
| Casting group | 4 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
