RHP MSF1 Imperial Four Bolt Square Cast Iron Flange Housing and 1 inch Bore Grub Screw Insert
RHP MSF1 Imperial Four Bolt Square Cast Iron Flange Housing and 1 inch Bore Grub Screw Insert
Regular price
€65,89
ex VAT
Regular price
Sale price
€65,89
ex VAT
In stock
Price Break
10+
€50,07
20+
€47,26
30+
€46,70
40+
€46,14
50+
€45,57
75+
€45,01
100+
€42,20
200+
€41,64
250+
€41,07
500+
€40,51
1000+
€39,38
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP MSF Series Heavy Duty 4 Bolt Square Cast Iron Housings: Bearing units supplied with a full width sealed heavy duty bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has two grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Style:
- MSF
- Bolt Hole Centres:
- 82.5mm = 3.248 inch

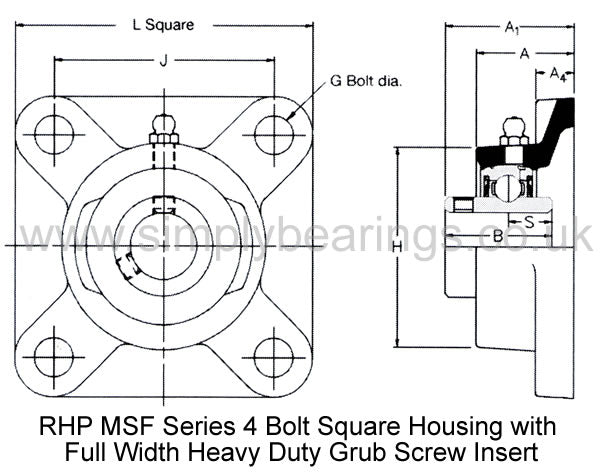

Technical
Technical
| Bore | 1 inch |
|---|---|
| L | 4.252 inch |
| H | 3.252 inch |
| J | 3.248 inch |
| G | 0.4375 inch |
| A | 1.173 inch |
| A1 | 1.662 inch |
| A4 | 0.5 inch |
| B | 1.5 inch |
| s | 0.627 inch |
| d1 | 1.575 inch |
| Dynamic load cr | 19500 N |
| Static load Cor | 11300 N |
| Rec max speed | 5300 rpm |
| Weight | 1.3 kg |
| Insert | <a href="advanced_search_result.php?keywords=1030-1G+insonly">1030-1G Click Here</a> |
| Casting group | 1 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
