SKU: MPL-M05-4-MB

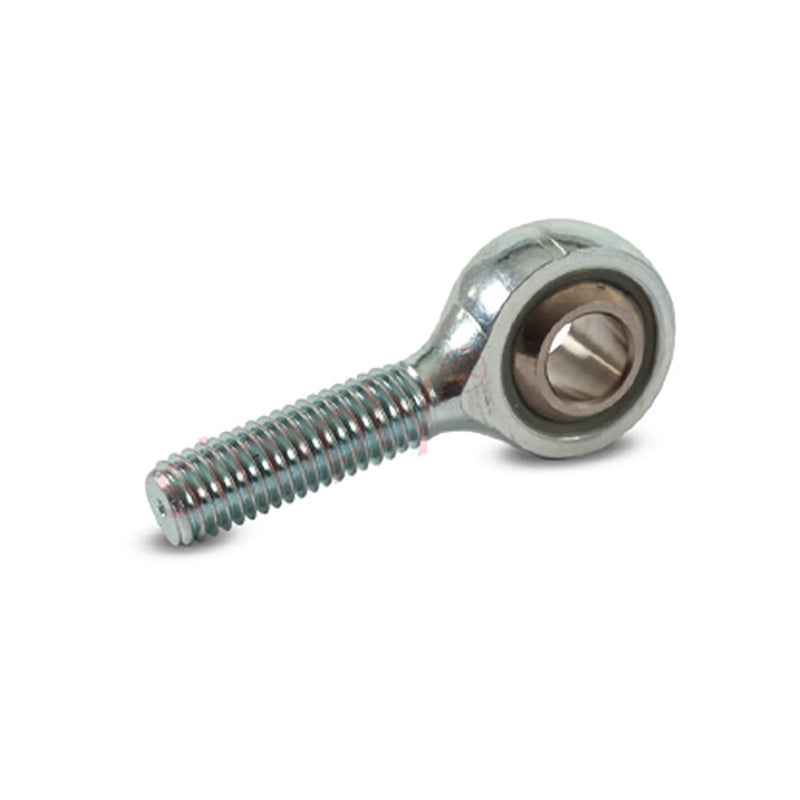

Branded MPL-M05-4 Left Hand Metric Steel / Nylon Lined Maintenance Free Plain Male Rod End M5x0.8 Thread - Allow 7-10 Days
- Regular price
- €15,58 ex VAT
- Sale price
- €15,58
- Regular price
-
Not in stock
Quantity Price Breaks
10
€13,87
19
€13,09
29
€12,93
39
€12,78
49
€12,62
74
€12,46
99
€11,69
199
€11,53
249
€11,37
499
€11,22
999
€10,91
SKU:
MPL-M05-4-MB
Branded MPL-M05-4 Left Hand Metric Steel / Nylon Lined Maintenance Free Plain Male Rod End M5x0.8 Thread - Allow 7-10 Days
- Regular price
- €15,58 ex VAT
- Sale price
- €15,58
- Regular price
-
Description
|
MP Series Nylon Lined Maintenance Free Male Rod Ends: The MP series are classed as maintenance free rod end bearings. They are self-lubricating general purpose male rod ends suitable for light to medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. They have excellent moisture resistance and require no maintenance. Materials: Housing: Steel 230M07PB zinc plated white and blue passivate (silver/clear) and stainless steel 303L. Race: GR-nylon LV-3H. Ball: Bearing steel 100Cr6, case hardened and electroless nickel plated and stainless steel 440C and SAE660. Operating Temperature Range: Operating temperature range -30c to +170c Benefits: Low friction, self-lubricating, good wear resistance, excellent moisture resistance . |
Technical
| Bore size | = | 4mm |
| Thread | = | M5x0.8 |
| W | = | 8mm |
| H | = | 6mm |
| D | = | 16mm |
| L1 | = | 33mm |
| L2 | = | 20mm |
| O | = | 7.5mm |
| Static load | = | 5340 N |
