SKU: MPL-M04-3-MB

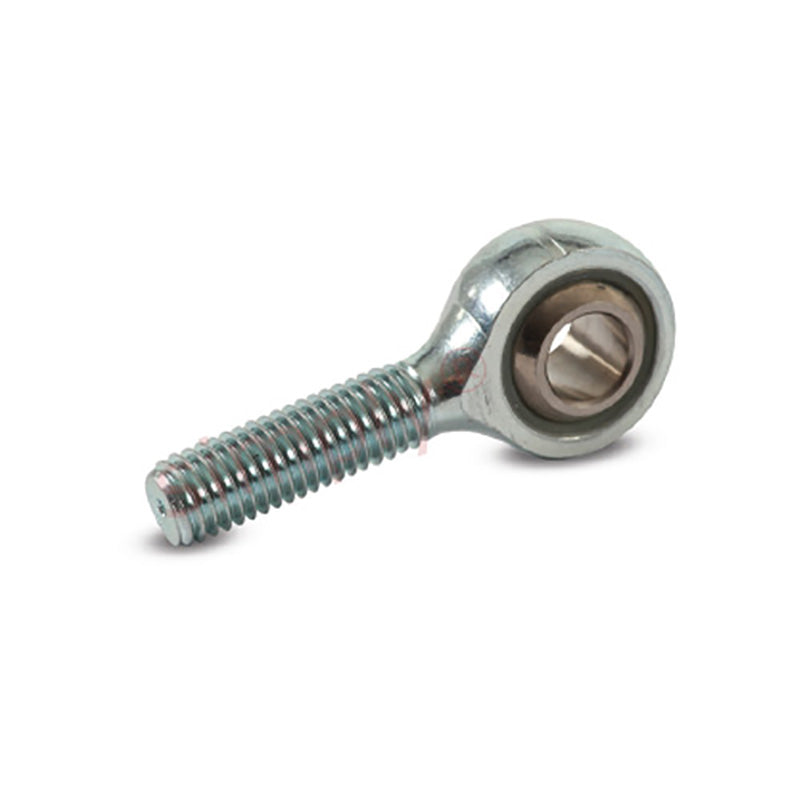

Branded MPL-M04-3 Left Hand Metric Steel / Nylon Lined Maintenance Free Plain Male Rod End M4x0.7 Thread - Allow 7-10 Days
- Regular price
- €15,55 ex VAT
- Sale price
- €15,55
- Regular price
-
Not in stock
Quantity Price Breaks
10
€13,84
19
€13,06
29
€12,91
39
€12,75
49
€12,60
74
€12,44
99
€11,66
199
€11,51
249
€11,35
499
€11,20
999
€10,89
SKU:
MPL-M04-3-MB
Branded MPL-M04-3 Left Hand Metric Steel / Nylon Lined Maintenance Free Plain Male Rod End M4x0.7 Thread - Allow 7-10 Days
- Regular price
- €15,55 ex VAT
- Sale price
- €15,55
- Regular price
-
Description
|
MP Series Nylon Lined Maintenance Free Male Rod Ends: The MP series are classed as maintenance free rod end bearings. They are self-lubricating general purpose male rod ends suitable for light to medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. They have excellent moisture resistance and require no maintenance. Materials: Housing: Steel 230M07PB zinc plated white and blue passivate (silver/clear) and stainless steel 303L. Race: GR-nylon LV-3H. Ball: Bearing steel 100Cr6, case hardened and electroless nickel plated and stainless steel 440C and SAE660. Operating Temperature Range: Operating temperature range -30c to +170c Benefits: Low friction, self-lubricating, good wear resistance, excellent moisture resistance . |
Technical
| Bore size | = | 3mm |
| Thread | = | M4x0.7 |
| W | = | 7mm |
| H | = | 5mm |
| D | = | 14mm |
| L1 | = | 30mm |
| L2 | = | 18mm |
| O | = | 6.3mm |
| Static load | = | 4060 N |
