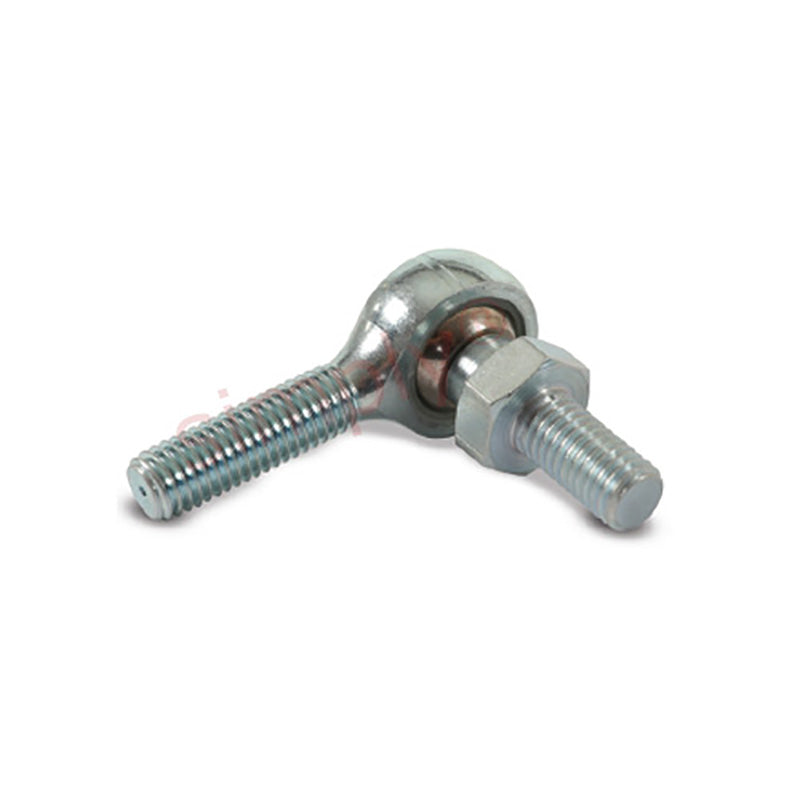

Branded MPL-03S Left Hand Imperial Steel / Nylon Lined Maintenance Free Studded Male Rod End 3/16 UNF Thread - Allow 7-10 Days

SKU: MPL-03S-MB

Branded MPL-03S Left Hand Imperial Steel / Nylon Lined Maintenance Free Studded Male Rod End 3/16 UNF Thread - Allow 7-10 Days

€16,35 ex VAT
€16,35
ex VAT
Not in stock

Quantity Price Breaks

10 €14,55
19 €13,73
29 €13,57
39 €13,41
49 €13,24
74 €13,08
99 €12,26
199 €12,10
249 €11,94
499 €11,77
999 €11,45
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Branded MPL-03S Left Hand Imperial Steel / Nylon Lined Maintenance Free Studded Male Rod End 3/16 UNF Thread - Allow 7-10 Days
SKU: MPL-03S-MB

Branded MPL-03S Left Hand Imperial Steel / Nylon Lined Maintenance Free Studded Male Rod End 3/16 UNF Thread - Allow 7-10 Days

€16,35 ex VAT
€16,35
ex VAT

Description

MPS Series Nylon Lined Studded Male Rod End: These studded MPS series are classed as maintenance free rod end bearings. They are self-lubricating general purpose male rod ends suitable for light to medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. They have excellent moisture resistance and require no maintenance
Materials: Housing: Steel 230M07PB zinc plated white and blue passivate (silver/clear) and stainless steel 303L. Race: GR-nylon LV-3H. Ball: Bearing steel 100Cr6, case hardened and electroless nickel plated and stainless steel 440C and SAE660. Stud: Steel 230M07PB zinc plated white and blue passivate (silver/ clear) and stainless steel 303L.
Operating Temperature Range: Operating temperature range -30c to +170c
Benefits: Low friction, self-lubricating, good wear resistance, excellent moisture resistance.

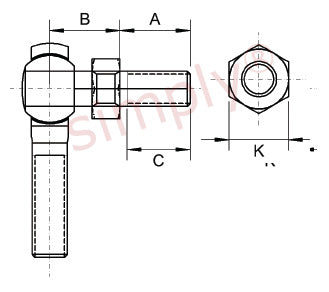

Technical

Stud size = 3/16UNF
Thread = 3/16 UNF
A = 0.5 inch
B = 0.516 inch
C = 0.437 inch
K = 0.312 inch
Static load = 1200 N
