SKU: MP95-RHP

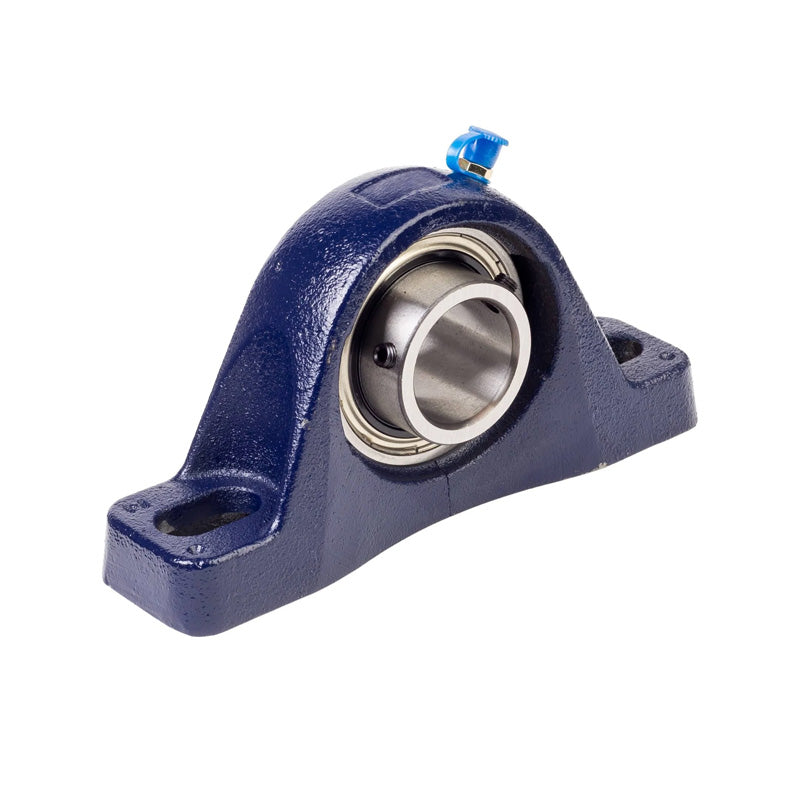

RHP MP95 Two Bolt Cast Iron Pillow Block and 95mm Bore Grub Screw Insert
RHP MP95 Two Bolt Cast Iron Pillow Block and 95mm Bore Grub Screw Insert
Regular price
€701,67
ex VAT
Regular price
Sale price
€701,67
ex VAT
In stock
Price Break
10+
€533,24
20+
€503,28
30+
€497,29
40+
€491,30
50+
€485,31
75+
€479,31
100+
€449,36
200+
€443,37
250+
€437,37
500+
€431,38
1000+
€419,40
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP MP Series Plummer / Pillow Housings: Supplied with a sealed full width bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 95mm
- Style:
- MP
- Bolt Hole Centres:
- 301.6-371.5mm
Technical
Technical
| Bore | 95mm |
|---|---|
| L | 431.8mm |
| H | 127mm |
| H1 | 33.3mm |
| H2 | 254mm |
| J max | 371.5mm |
| J min | 301.6mm |
| G | 24mm |
| A | 120.6mm |
| A1 | 98.4mm |
| B | 117.48mm |
| s | 49.27mm |
| d1 | 130.43mm |
| Dynamic load Cr | 157000 N |
| Static load Cor | 122000 N |
| Rec max speed | 1600 rpm |
| Weight | 34.4 kg |
| Insert | <a href="advanced_search_result.php?keywords=3095-95G+insonly">3095-95G Click Here</a> |
| Casting group | 13 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
