SKU: MP35-RHP

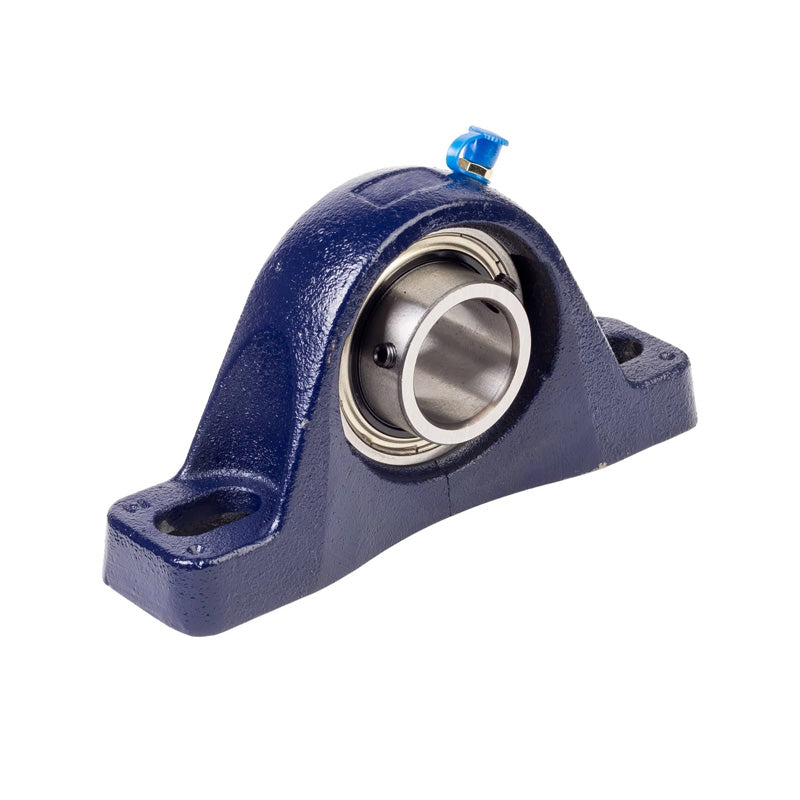

RHP MP35 Two Bolt Cast Iron Pillow Block and 35mm Bore Grub Screw Insert

RHP MP35 Two Bolt Cast Iron Pillow Block and 35mm Bore Grub Screw Insert
Regular price €71,77 ex VAT
Regular price Sale price €71,77 ex VAT
Sale Sold out

In stock

Price Break
10+ €54,54
20+ €51,47
30+ €50,86
40+ €50,25
50+ €49,63
75+ €49,02
100+ €45,96
200+ €45,34
250+ €44,73
500+ €44,12
1000+ €42,89
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 35mm
L 203.2mm
H 53.98mm
H1 23mm
H2 107.5mm
J max 160mm
J min 135mm
G 12mm
A 57mm
A1 40.5mm
B 49.23mm
s 19.1mm
d1 52.7mm
Dynamic load Cr 32500 N
Static load Cor 19900 N
Rec max speed 4000 rpm
Weight 2.7 kg
Insert <a href="advanced_search_result.php?keywords=1040-35G+insonly">1040-35G Click Here</a>
Casting group 3
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
