SKU: MP30-RHP

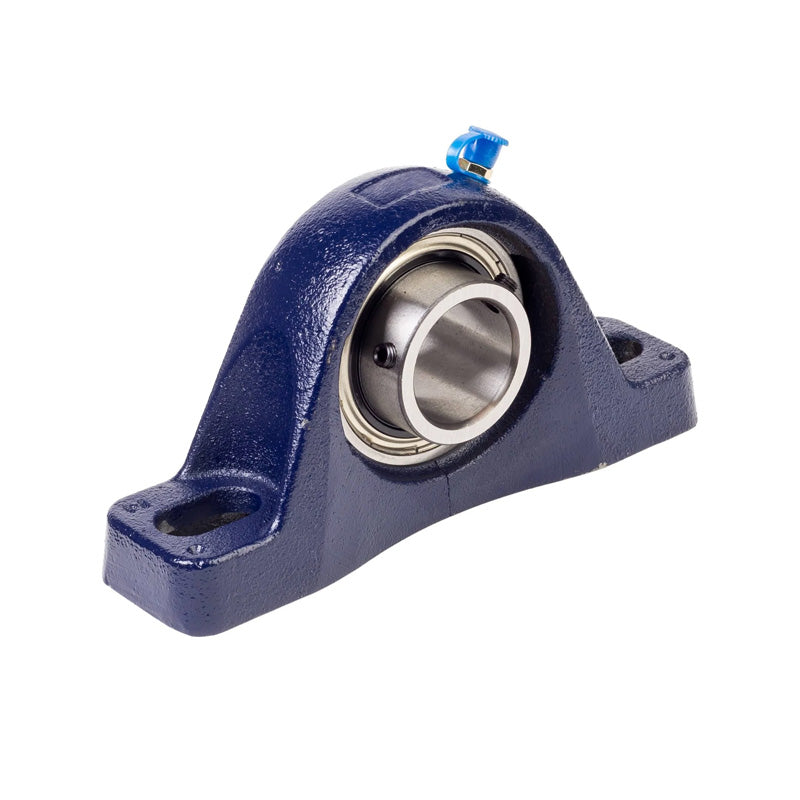

RHP MP30 Two Bolt Cast Iron Pillow Block and 30mm Bore Grub Screw Insert

RHP MP30 Two Bolt Cast Iron Pillow Block and 30mm Bore Grub Screw Insert
Regular price €67,12 ex VAT
Regular price Sale price €67,12 ex VAT
Sale Sold out

In stock

Price Break
10+ €51,00
20+ €48,14
30+ €47,56
40+ €46,99
50+ €46,42
75+ €45,85
100+ €42,98
200+ €42,41
250+ €41,83
500+ €41,26
1000+ €40,11
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical

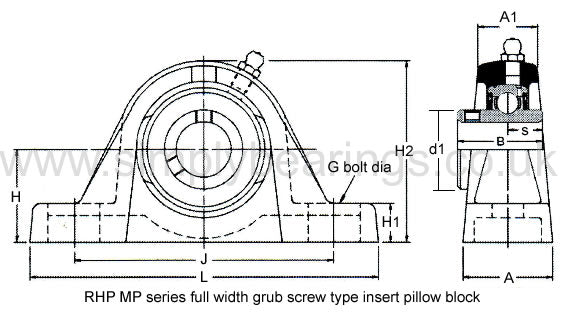

Bore 30mm
L 166mm
H 47.6mm
H1 17.5mm
H2 93mm
J max 136.5mm
J min 121.5mm
G 12mm
A 44.5mm
A1 30.5mm
B 42.88mm
s 17.53mm
d1 46.69mm
Dynamic load Cr 25700 N
Static load Cor 15300 N
Rec max speed 4500 rpm
Weight 1.7 kg
Insert <a href="advanced_search_result.php?keywords=1035-30G+insonly">1035-30G Click Here</a>
Casting group 2
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
