SKU: MP3.7/16-RHP

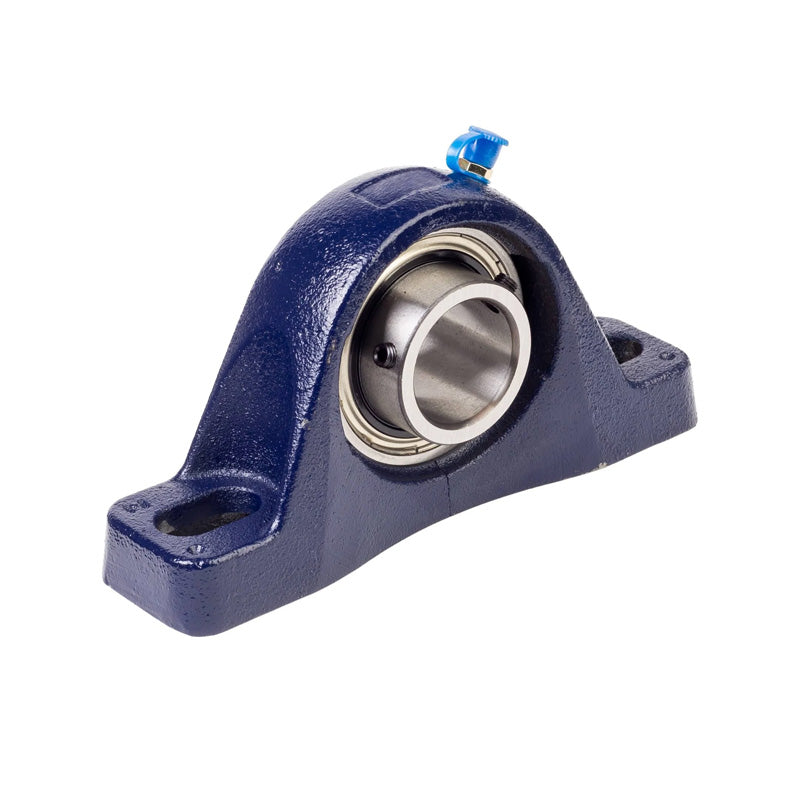

RHP MP3-7/16 Two Bolt Cast Iron Pillow Block and 3-7/16 Bore Grub Screw Insert
RHP MP3-7/16 Two Bolt Cast Iron Pillow Block and 3-7/16 Bore Grub Screw Insert
Regular price
€496,30
ex VAT
Regular price
Sale price
€496,30
ex VAT
In stock
Price Break
10+
€377,16
20+
€355,97
30+
€351,73
40+
€347,50
50+
€343,26
75+
€339,02
100+
€317,83
200+
€313,59
250+
€309,36
500+
€305,12
1000+
€296,64
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP MP Series Plummer / Pillow Housings: Supplied with a sealed full width bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 87.31mm = 3.437 (3-7/16) inch
- Style:
- MP
- Bolt Hole Centres:
- 9.689-12.563 inch
Technical
Technical
| Bore | 3-7/16 inch |
|---|---|
| L | 15 inch |
| H | 4000 inch |
| H1 | 1.311 inch |
| H2 | 8.252 inch |
| J max | 12.563 inch |
| J min | 9.689 inch |
| G | 1 inch |
| A | 4.374 inch |
| A1 | 3.126 inch |
| B | 3.781 inch |
| s | 1.564 inch |
| d1 | 4.396 inch |
| Dynamic load Cr | 96000 N |
| Static load Cor | 71500 N |
| Rec max speed | 1900 rpm |
| Weight | 23.4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1090-3-7/16G+insonly">1090-3-7/16G Click Here</a> |
| Casting group | 12 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
