SKU: MP3.15/16-RHP

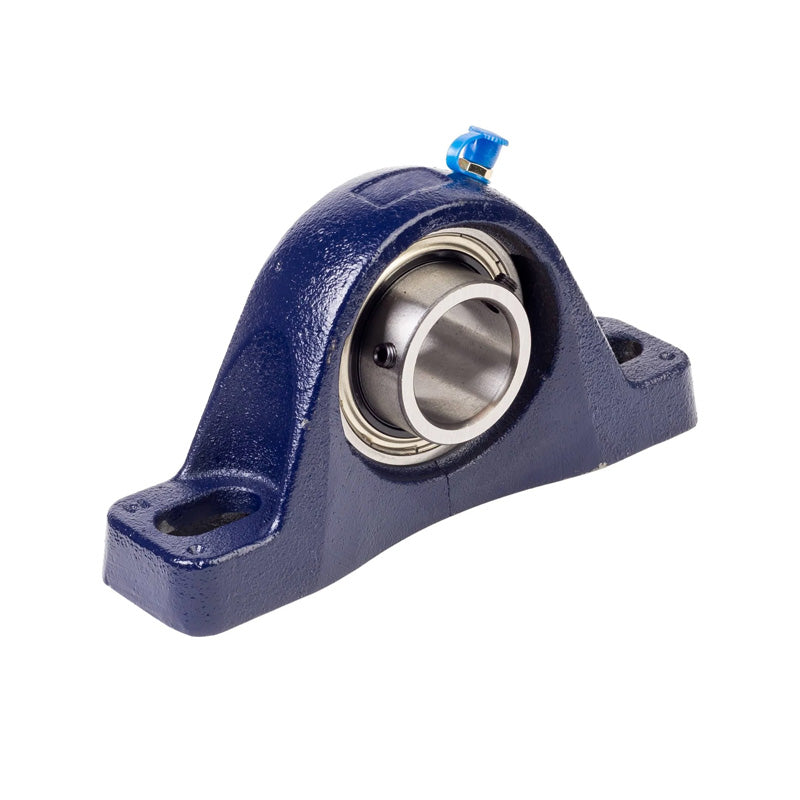

RHP MP3-15/16 Two Bolt Cast Iron Pillow Block and 3-15/16 Bore Grub Screw Insert
RHP MP3-15/16 Two Bolt Cast Iron Pillow Block and 3-15/16 Bore Grub Screw Insert
Regular price
€744,32
ex VAT
Regular price
Sale price
€744,32
ex VAT
In stock
Price Break
10+
€565,65
20+
€533,87
30+
€527,51
40+
€521,16
50+
€514,80
75+
€508,45
100+
€476,67
200+
€470,31
250+
€463,96
500+
€457,60
1000+
€444,89
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP MP Series Plummer / Pillow Housings: Supplied with a sealed full width bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 100.01mm = 3.937 (3-15/16) inch
- Style:
- MP
- Bolt Hole Centres:
- 11.874-14.626 inch
Technical
Technical
| Bore | 3-15/16 inch |
|---|---|
| L | 17 inch |
| H | 5 inch |
| H1 | 1.311 inch |
| H2 | 10 inch |
| J max | 14.626 inch |
| J min | 11.874 inch |
| G | 1 inch |
| A | 4.748 inch |
| A1 | 3.874 inch |
| B | 4.625 inch |
| s | 1.94 inch |
| d1 | 5.135 inch |
| Dynamic load Cr | 157000 N |
| Static load Cor | 122000 N |
| Rec max speed | 1600 rpm |
| Weight | 34.4 kg |
| Insert | <a href="advanced_search_result.php?keywords=3095-3-15/16G+insonly">3095-3-15/16G Click Here</a> |
| Casting group | 13 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
