SKU: MP2.7/16-RHP

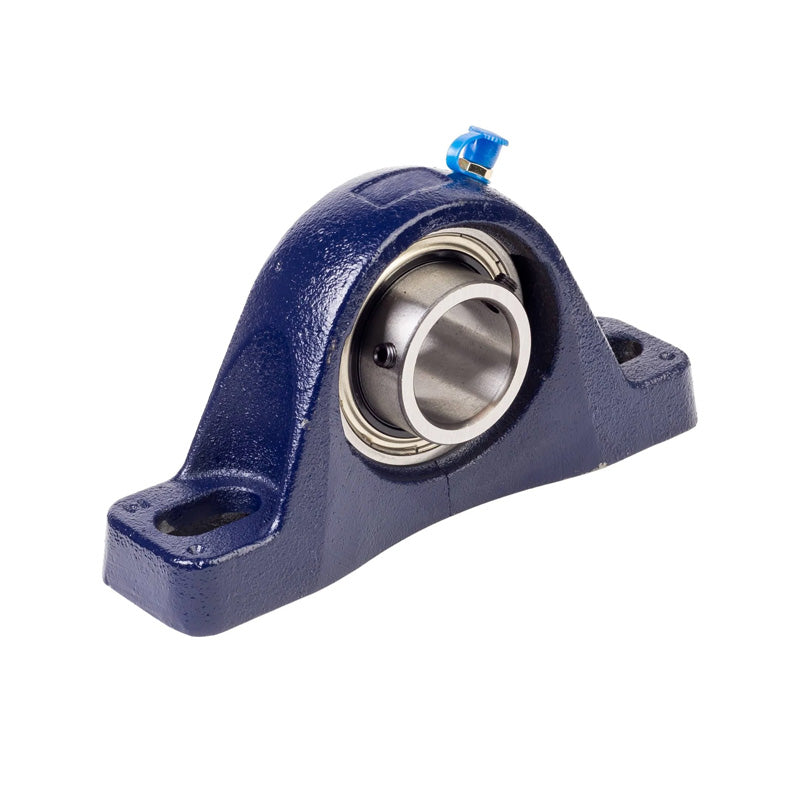

RHP MP2-7/16 Two Bolt Cast Iron Pillow Block and 2-7/16 Bore Grub Screw Insert
RHP MP2-7/16 Two Bolt Cast Iron Pillow Block and 2-7/16 Bore Grub Screw Insert
Regular price
€193,04
ex VAT
Regular price
Sale price
€193,04
ex VAT
In stock
Price Break
10+
€146,70
20+
€138,46
30+
€136,81
40+
€135,16
50+
€133,51
75+
€131,86
100+
€123,62
200+
€121,97
250+
€120,33
500+
€118,68
1000+
€115,38
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP MP Series Plummer / Pillow Housings: Supplied with a sealed full width bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 61.91mm = 2.437 (2-7/16) inch
- Style:
- MP
- Bolt Hole Centres:
- 7.48-8.811 inch
Technical
Technical
| Bore | 2-7/16 inch |
|---|---|
| L | 11.252 inch |
| H | 3 inch |
| H1 | 1.063 inch |
| H2 | 6.252 inch |
| J max | 8.811 inch |
| J min | 7.48 inch |
| G | 0.75 inch |
| A | 3.252 inch |
| A1 | 2.374 inch |
| B | 2.938 inch |
| s | 1.19 inch |
| d1 | 3.425 inch |
| Dynamic load Cr | 61000 N |
| Static load Cor | 45000 N |
| Rec max speed | 2450 rpm |
| Weight | 9.3 kg |
| Insert | <a href="advanced_search_result.php?keywords=1070-2-7/16G+insonly">1070-2-7/16G Click Here</a> |
| Casting group | 8 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
