SKU: MP2.3/16-RHP

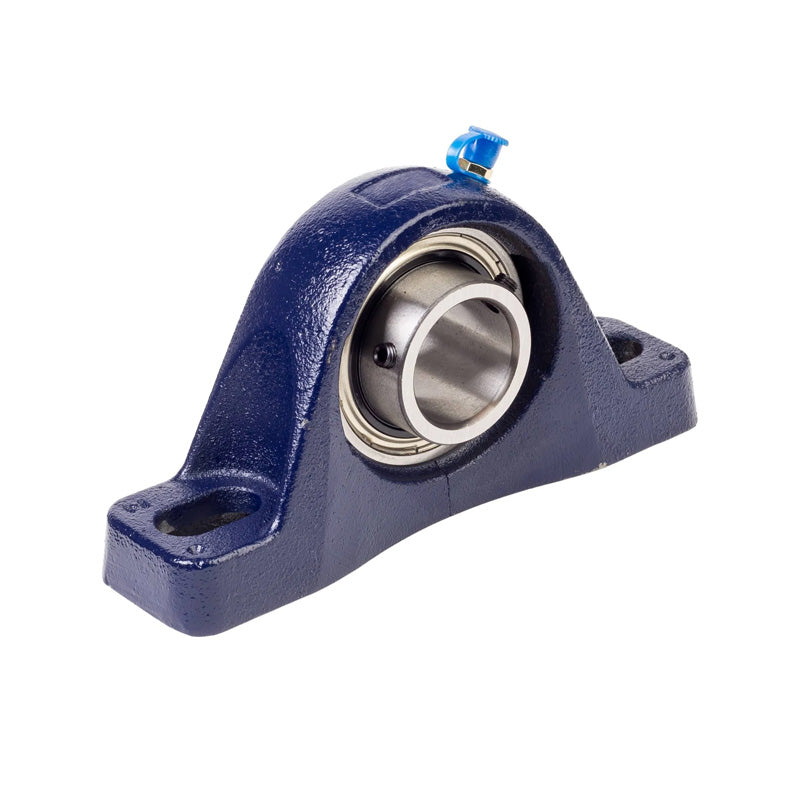

RHP MP2-3/16 Two Bolt Cast Iron Pillow Block and 2-3/16 Bore Grub Screw Insert
RHP MP2-3/16 Two Bolt Cast Iron Pillow Block and 2-3/16 Bore Grub Screw Insert
Regular price
€174,20
ex VAT
Regular price
Sale price
€174,20
ex VAT
In stock
Price Break
10+
€132,39
20+
€124,95
30+
€123,47
40+
€121,98
50+
€120,49
75+
€119,00
100+
€111,57
200+
€110,08
250+
€108,59
500+
€107,10
1000+
€104,13
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP MP Series Plummer / Pillow Housings: Supplied with a sealed full width bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 55.56mm = 2.187 (2-3/16) inch
- Style:
- MP
- Bolt Hole Centres:
- 6.89-7.874 inch
Technical
Technical
| Bore | 2-3/16 inch |
|---|---|
| L | 10.252 inch |
| H | 2.75 inch |
| H1 | 1.063 inch |
| H2 | 5.626 inch |
| J max | 7.874 inch |
| J min | 6.89 inch |
| G | 0.75 inch |
| A | 3.126 inch |
| A1 | 2 inch |
| B | 2.562 inch |
| s | 1.002 inch |
| d1 | 2.966 inch |
| Dynamic load Cr | 48000 N |
| Static load Cor | 33000 N |
| Rec max speed | 2800 rpm |
| Weight | 7.1 kg |
| Insert | <a href="advanced_search_result.php?keywords=1060-2-3/16G+insonly">1060-2-3/16G Click Here</a> |
| Casting group | 7 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
