SKU: MP2.15/16-RHP

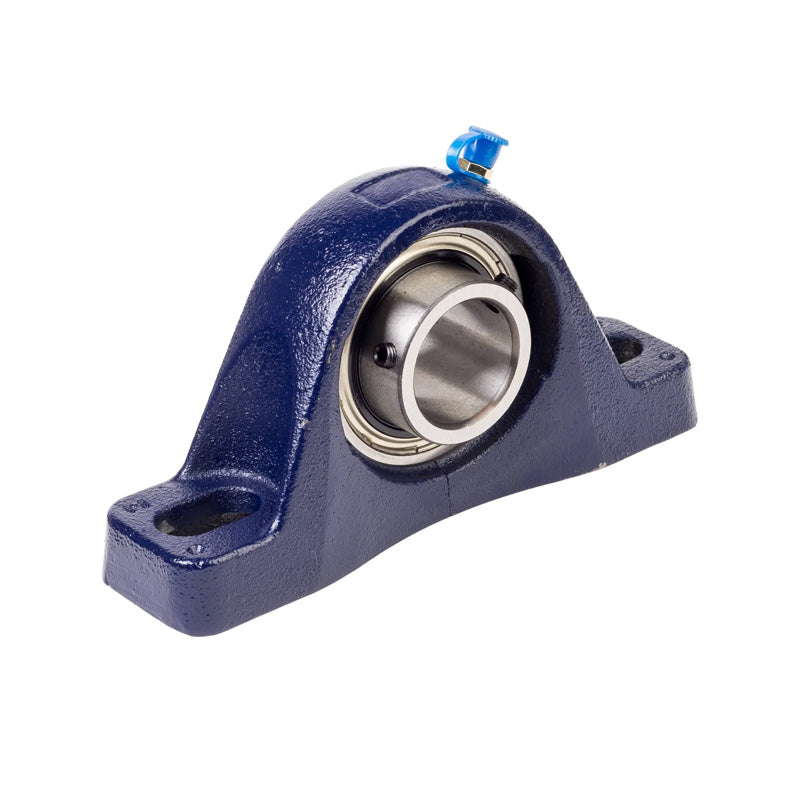

RHP MP2-15/16 Two Bolt Cast Iron Pillow Block and 2-15/16 Bore Grub Screw Insert
RHP MP2-15/16 Two Bolt Cast Iron Pillow Block and 2-15/16 Bore Grub Screw Insert
Regular price
€316,89
ex VAT
Regular price
Sale price
€316,89
ex VAT
In stock
Price Break
10+
€240,83
20+
€227,30
30+
€224,59
40+
€221,89
50+
€219,18
75+
€216,48
100+
€202,95
200+
€200,24
250+
€197,53
500+
€194,83
1000+
€189,42
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP MP Series Plummer / Pillow Housings: Supplied with a sealed full width bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 74.61mm = 2.937 (2-15/16) inch
- Style:
- MP
- Bolt Hole Centres:
- 8.976-10.063 inch
Technical
Technical
| Bore | 2-15/16 inch |
|---|---|
| L | 13 inch |
| H | 3.5 inch |
| H1 | 1.252 inch |
| H2 | 7.252 inch |
| J max | 10.063 inch |
| J min | 8.976 inch |
| G | 1 inch |
| A | 3.5 inch |
| A1 | 2.626 inch |
| B | 3.25 inch |
| s | 1.314 inch |
| d1 | 3.878 inch |
| Dynamic load Cr | 71500 N |
| Static load Cor | 54500 N |
| Rec max speed | 2150 rpm |
| Weight | 14.3 kg |
| Insert | <a href="advanced_search_result.php?keywords=1080-2-15/16G+insonly">1080-2-15/16G Click Here</a> |
| Casting group | 10 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
