SKU: MP2.11/16-RHP

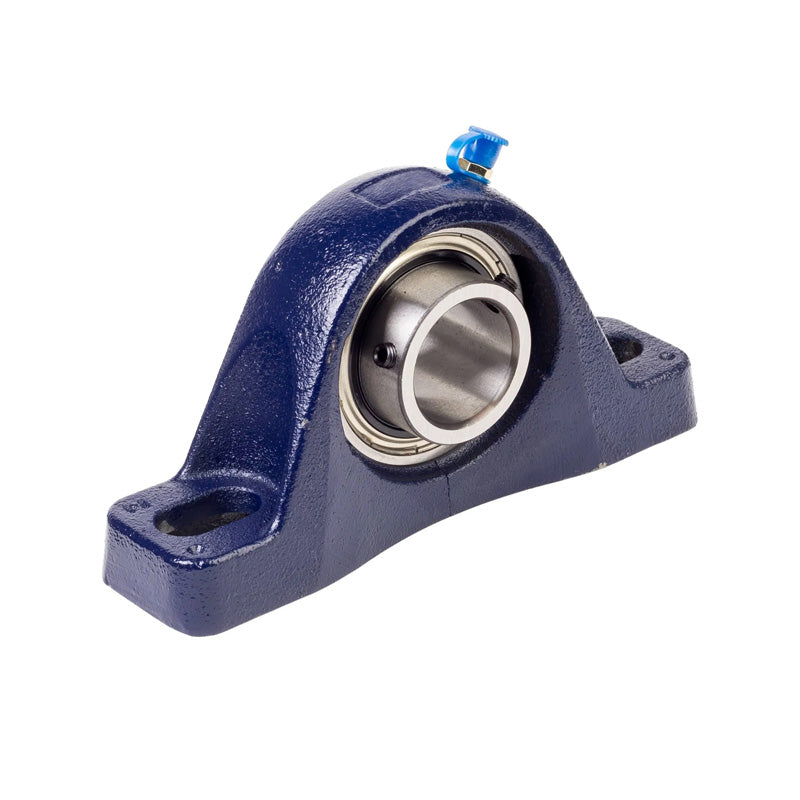

RHP MP2-11/16 Two Bolt Cast Iron Pillow Block and 2-11/16 Bore Grub Screw Insert
RHP MP2-11/16 Two Bolt Cast Iron Pillow Block and 2-11/16 Bore Grub Screw Insert
Regular price
€274,84
ex VAT
Regular price
Sale price
€274,84
ex VAT
In stock
Price Break
10+
€208,86
20+
€197,13
30+
€194,78
40+
€192,44
50+
€190,09
75+
€187,74
100+
€176,01
200+
€173,66
250+
€171,31
500+
€168,97
1000+
€164,27
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP MP Series Plummer / Pillow Housings: Supplied with a sealed full width bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 68.26mm = 2.687 (2-11/16) inch
- Style:
- MP
- Bolt Hole Centres:
- 8.11-10.063 inch
Technical
Technical
| Bore | 2-11/16 inch |
|---|---|
| L | 13 inch |
| H | 3.5 inch |
| H1 | 1.126 inch |
| H2 | 7 inch |
| J max | 10.063 inch |
| J min | 8.11 inch |
| G | 1 inch |
| A | 3.5 inch |
| A1 | 2.626 inch |
| B | 3.062 inch |
| s | 1.314 inch |
| d1 | 3.622 inch |
| Dynamic load Cr | 66000 N |
| Static load Cor | 49500 N |
| Rec max speed | 2300 rpm |
| Weight | 13.4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1075-2-11/16G+insonly">1075-2-11/16G Click Here</a> |
| Casting group | 9 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
