SKU: MP100-RHP

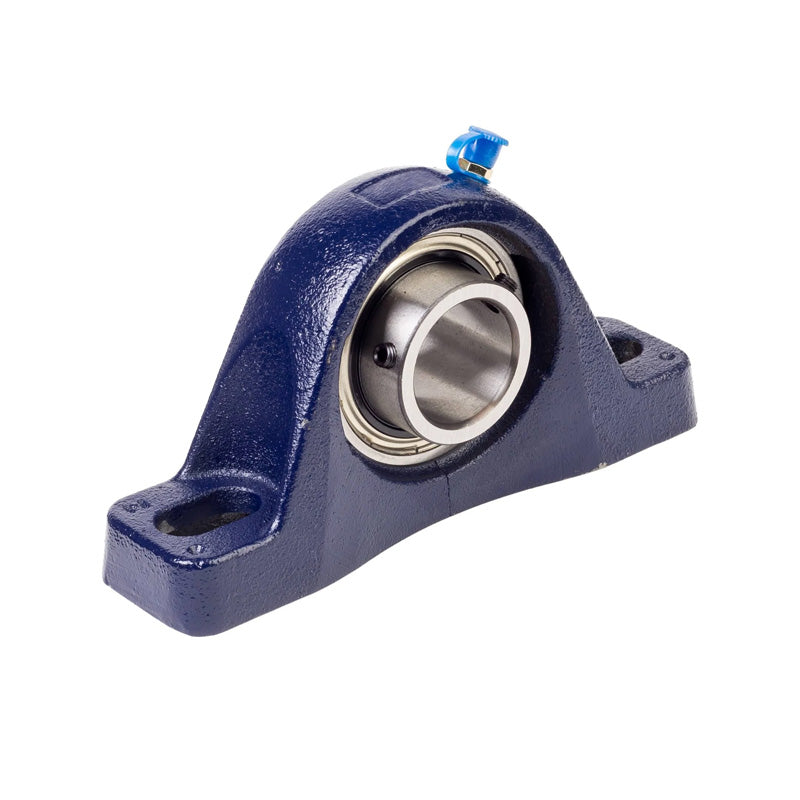

RHP MP100 Two Bolt Cast Iron Pillow Block and 100mm Bore Grub Screw Insert

RHP MP100 Two Bolt Cast Iron Pillow Block and 100mm Bore Grub Screw Insert
Regular price €701,67 ex VAT
Regular price Sale price €701,67 ex VAT
Sale Sold out

In stock

Price Break
10+ €533,24
20+ €503,28
30+ €497,29
40+ €491,30
50+ €485,31
75+ €479,31
100+ €449,36
200+ €443,37
250+ €437,37
500+ €431,38
1000+ €419,40
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 100mm
L 17 inch
H 5 inch
H1 1.311 inch
H2 10 inch
J max 14.626 inch
J min 11.874 inch
G 1 inch
A 4.748 inch
A1 3.874 inch
B 4.625 inch
s 1.94 inch
d1 5.135 inch
Dynamic load Cr 157000 N
Static load Cor 122000 N
Rec max speed 1600 rpm
Weight 34.4 kg
Insert <a href="advanced_search_result.php?keywords=3095-100G+insonly">3095-100G Click Here</a>
Casting group 13
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
