SKU: MP1.7/16-RHP

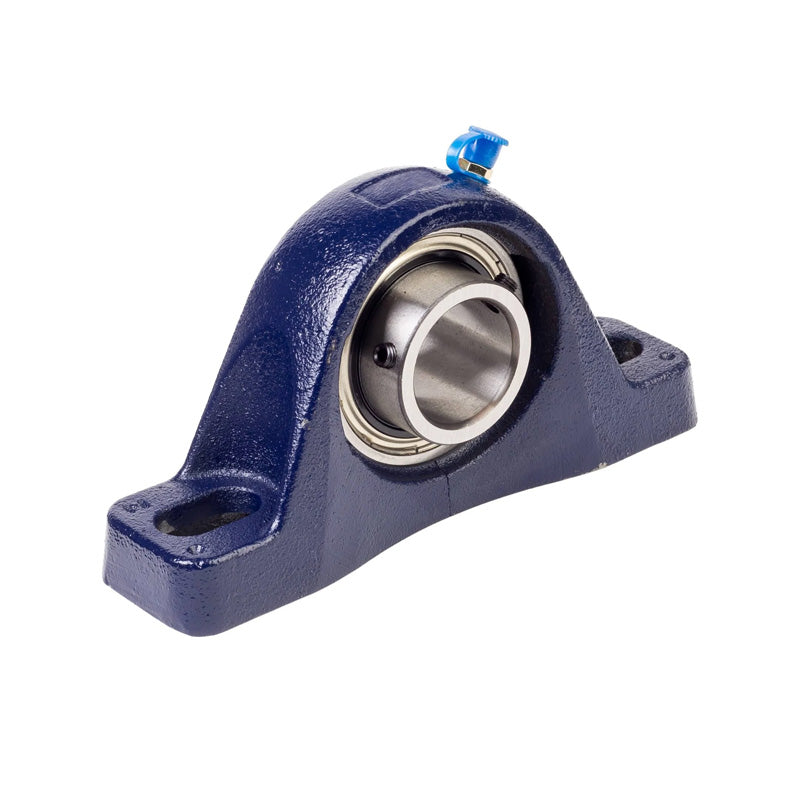

RHP MP1-7/16 Two Bolt Cast Iron Pillow Block and 1-7/16 Bore Grub Screw Insert
RHP MP1-7/16 Two Bolt Cast Iron Pillow Block and 1-7/16 Bore Grub Screw Insert
Regular price
€76,13
ex VAT
Regular price
Sale price
€76,13
ex VAT
In stock
Price Break
10+
€57,86
20+
€54,61
30+
€53,96
40+
€53,31
50+
€52,66
75+
€52,01
100+
€48,76
200+
€48,11
250+
€47,46
500+
€46,81
1000+
€45,51
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP MP Series Plummer / Pillow Housings: Supplied with a sealed full width bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 36.51mm = 1.437 (1-7/16) inch
- Style:
- MP
- Bolt Hole Centres:
- 5.315-6.3 inch
Technical
Technical
| Bore | 1-7/16 inch |
|---|---|
| L | 8 inch |
| H | 2.125 inch |
| H1 | 0.906 inch |
| H2 | 4.232 inch |
| J max | 6.3 inch |
| J min | 5.315 inch |
| G | 0.5 inch |
| A | 2.244 inch |
| A1 | 1.594 inch |
| B | 1.938 inch |
| s | 0.752 inch |
| d1 | 2.075 inch |
| Dynamic load Cr | 32500 N |
| Static load Cor | 19900 N |
| Rec max speed | 4000 rpm |
| Weight | 2.7 kg |
| Insert | <a href="advanced_search_result.php?keywords=1040-1-7/16G+insonly">1040-1-7/16G Click Here</a> |
| Casting group | 3 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
