SKU: MP1.3/4-RHP

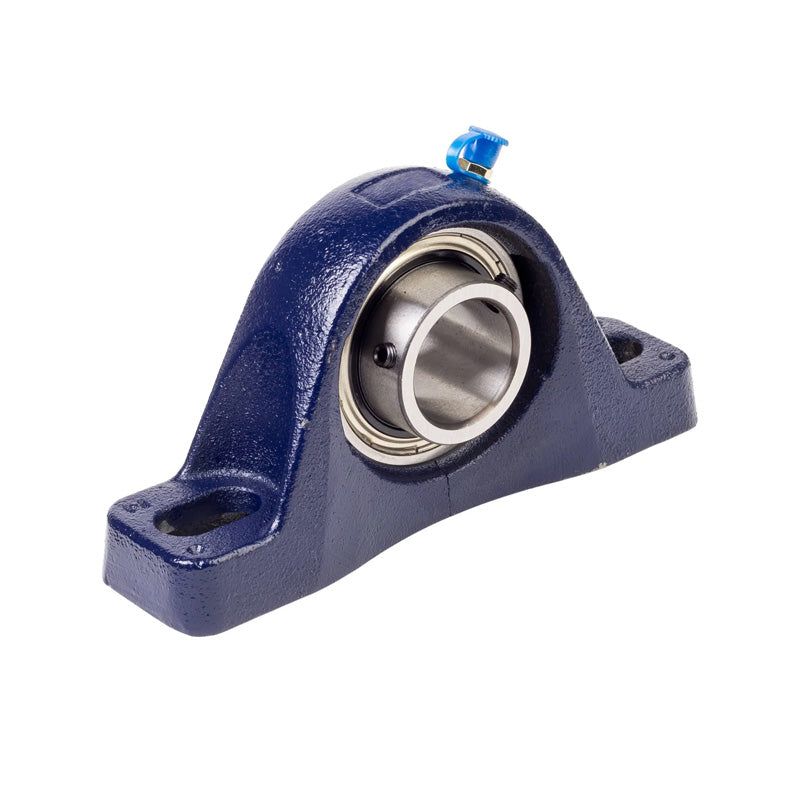

RHP MP1-3/4 Two Bolt Cast Iron Pillow Block and 1-3/4 Bore Grub Screw Insert
RHP MP1-3/4 Two Bolt Cast Iron Pillow Block and 1-3/4 Bore Grub Screw Insert
Regular price
€111,15
ex VAT
Regular price
Sale price
€111,15
ex VAT
In stock
Price Break
10+
€84,47
20+
€79,73
30+
€78,78
40+
€77,83
50+
€76,88
75+
€75,93
100+
€71,18
200+
€70,23
250+
€69,29
500+
€68,34
1000+
€66,44
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP MP Series Plummer / Pillow Housings: Supplied with a sealed full width bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 44.45mm = 1.75 (1-3/4) inch
- Style:
- MP
- Bolt Hole Centres:
- 5.709-6.791 inch
Technical
Technical
| Bore | 1-3/4 inch |
|---|---|
| L | 8.748 inch |
| H | 2.312 inch |
| H1 | 0.886 inch |
| H2 | 4.594 inch |
| J max | 6.791 inch |
| J min | 5.709 inch |
| G | 0.625 inch |
| A | 2.362 inch |
| A1 | 1.555 inch |
| B | 2.031 inch |
| s | 0.752 inch |
| d1 | 2.449 inch |
| Dynamic load Cr | 35000 N |
| Static load Cor | 23200 N |
| Rec max speed | 3400 rpm |
| Weight | 3.2 kg |
| Insert | <a href="advanced_search_result.php?keywords=1050-1-3/4G+insonly">1050-1-3/4G Click Here</a> |
| Casting group | 5 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
