SKU: MP1.3/16-RHP

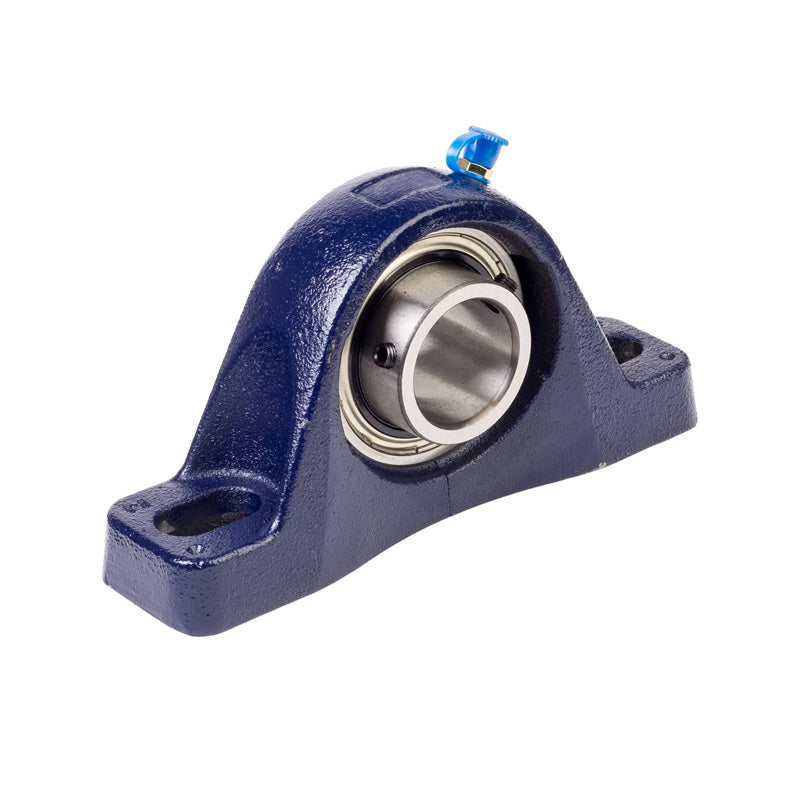

RHP MP1-3/16 Two Bolt Cast Iron Pillow Block and 1-3/16 Bore Grub Screw Insert
RHP MP1-3/16 Two Bolt Cast Iron Pillow Block and 1-3/16 Bore Grub Screw Insert
Regular price
€71,19
ex VAT
Regular price
Sale price
€71,19
ex VAT
In stock
Price Break
10+
€54,10
20+
€51,06
30+
€50,45
40+
€49,85
50+
€49,24
75+
€48,63
100+
€45,59
200+
€44,98
250+
€44,38
500+
€43,77
1000+
€42,55
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP MP Series Plummer / Pillow Housings: Supplied with a sealed full width bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 30.16mm = 1.187 (1-3/16) inch
- Style:
- MP
- Bolt Hole Centres:
- 4.783-5.374 inch
Technical
Technical
| Bore | 1-3/16 inch |
|---|---|
| L | 6.535 inch |
| H | 1.874 inch |
| H1 | 0.689 inch |
| H2 | 3.661 inch |
| J max | 5.374 inch |
| J min | 4.783 inch |
| G | 0.5 inch |
| A | 1.752 inch |
| A1 | 1.201 inch |
| B | 1.688 inch |
| s | 0.69 inch |
| d1 | 1.838 inch |
| Dynamic load Cr | 25700 N |
| Static load Cor | 15300 N |
| Rec max speed | 4500 rpm |
| Weight | 1.7 kg |
| Insert | <a href="advanced_search_result.php?keywords=1035-1-3/16G+insonly">1035-1-3/16G Click Here</a> |
| Casting group | 2 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
