SKU: MP1.1/2-RHP

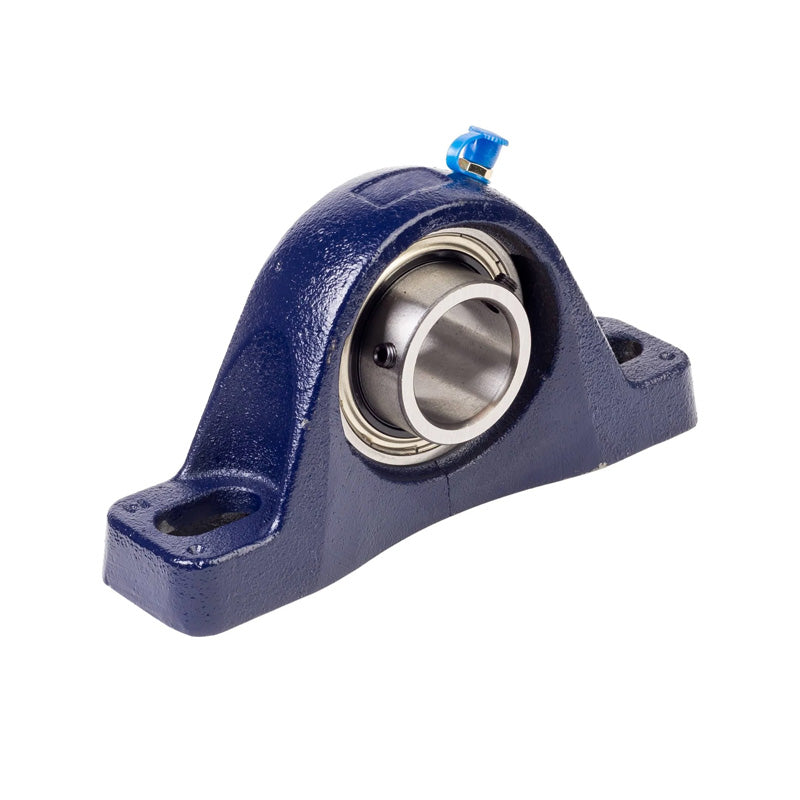

RHP MP1-1/2 Two Bolt Cast Iron Pillow Block and 1-1/2 Bore Grub Screw Insert
RHP MP1-1/2 Two Bolt Cast Iron Pillow Block and 1-1/2 Bore Grub Screw Insert
Regular price
€86,55
ex VAT
Regular price
Sale price
€86,55
ex VAT
In stock
Price Break
10+
€65,77
20+
€62,08
30+
€61,34
40+
€60,60
50+
€59,86
75+
€59,12
100+
€55,42
200+
€54,69
250+
€53,95
500+
€53,21
1000+
€51,73
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP MP Series Plummer / Pillow Housings: Supplied with a sealed full width bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Style:
- MP
- Bolt Hole Centres:
- 5.709-6.791 inch
Technical
Technical
| Bore | 1-1/2 inch |
|---|---|
| L | 8.748 inch |
| H | 2.312 inch |
| H1 | 0.886 inch |
| H2 | 4.594 inch |
| J max | 6.791 inch |
| J min | 5.709 inch |
| G | 0.625 inch |
| A | 2.362 inch |
| A1 | 1.555 inch |
| B | 1.938 inch |
| s | 0.752 inch |
| d1 | 2.256 inch |
| Dynamic load Cr | 32500 N |
| Static load Cor | 20500 N |
| Rec max speed | 3700 rpm |
| Weight | 3.2 kg |
| Insert | <a href="advanced_search_result.php?keywords=1045-1-1/2G+insonly">1045-1-1/2G Click Here</a> |
| Casting group | 4 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
