SKU: MP-16F-MB

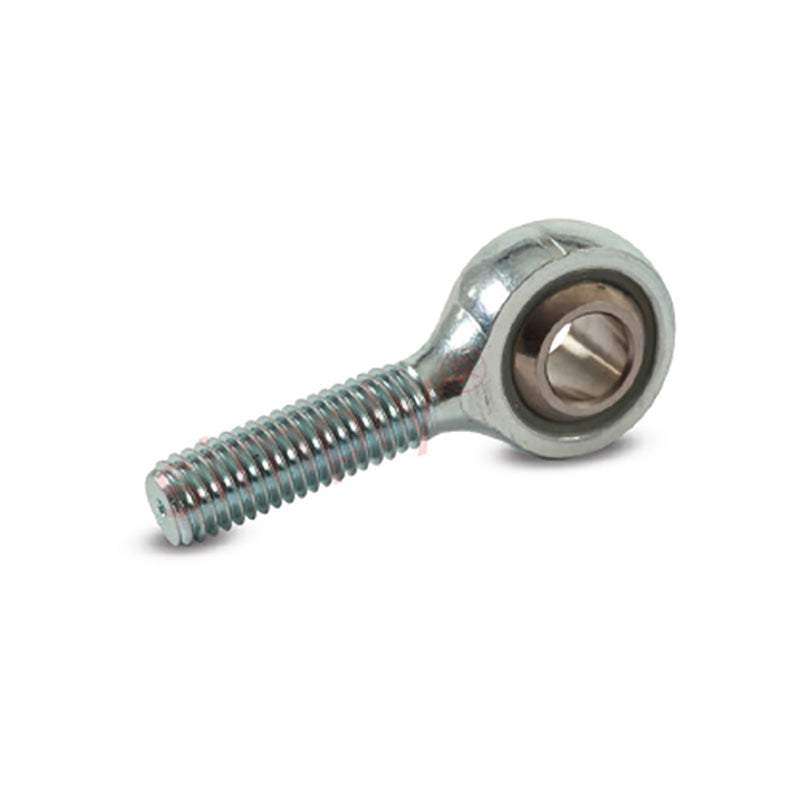

Branded MP-16F Right Hand Imperial Steel / Nylon Lined Maintenance Free Plain Male Rod End 1 BSF Thread - Allow 7-10 Days
- Regular price
- €94,62 ex VAT
- Sale price
- €94,62
- Regular price
-
Not in stock
Quantity Price Breaks
10
€84,21
19
€79,48
29
€78,53
39
€77,59
49
€76,64
74
€75,70
99
€70,97
199
€70,02
249
€69,07
499
€68,13
999
€66,23
SKU:
MP-16F-MB
Branded MP-16F Right Hand Imperial Steel / Nylon Lined Maintenance Free Plain Male Rod End 1 BSF Thread - Allow 7-10 Days
- Regular price
- €94,62 ex VAT
- Sale price
- €94,62
- Regular price
-
Description
|
MP Series Nylon Lined Maintenance Free Male Rod Ends: The MP series are classed as maintenance free rod end bearings. They are self-lubricating general purpose male rod ends suitable for light to medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. They have excellent moisture resistance and require no maintenance. Materials: Housing: Steel 230M07PB zinc plated white and blue passivate (silver/clear) and stainless steel 303L. Race: GR-nylon LV-3H. Ball: Bearing steel 100Cr6, case hardened and electroless nickel plated and stainless steel 440C and SAE660. Operating Temperature Range: Operating temperature range -30c to +170c Benefits: Low friction, self-lubricating, good wear resistance, excellent moisture resistance . |
Technical
| Bore size | = | 1 inch |
| Thread | = | 1 BSF |
| W | = | 1.375 inch |
| H | = | 1 inch |
| D | = | 2.75 inch |
| L1 | = | 4.125 inch |
| L2 | = | 2.125 inch |
| O | = | 1.021 inch |
| Static load | = | 65200 N |
