SKU: MP-12F-MB

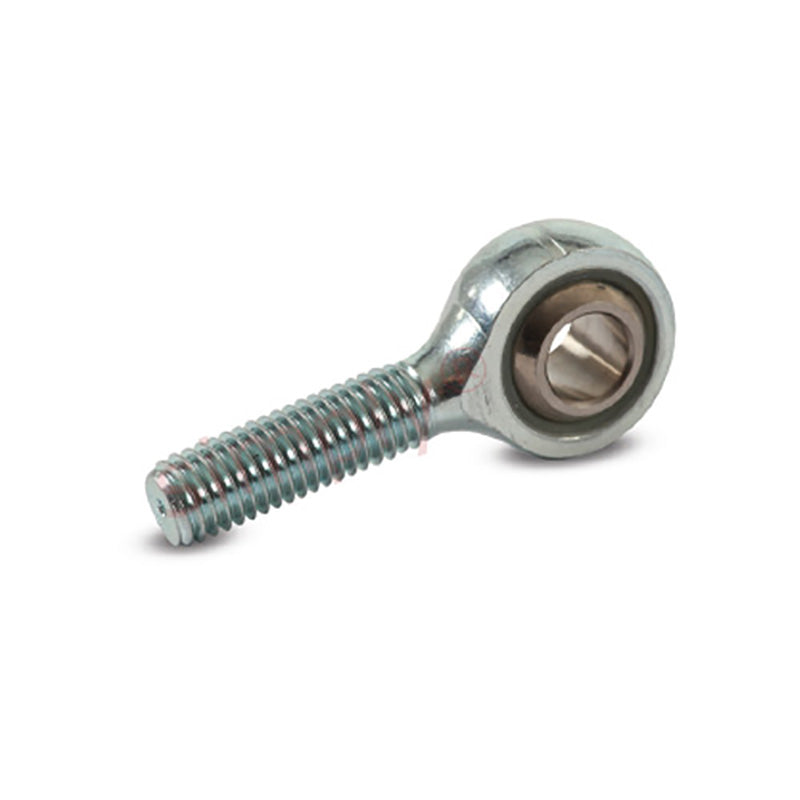

Branded MP-12F Right Hand Imperial Steel / Nylon Lined Maintenance Free Plain Male Rod End 3/4 BSF Thread - Allow 7-10 Days
- Regular price
- €49,99 ex VAT
- Sale price
- €49,99
- Regular price
-
Not in stock
Quantity Price Breaks
10
€44,49
19
€41,99
29
€41,49
39
€40,99
49
€40,49
74
€39,99
99
€37,49
199
€36,99
249
€36,49
499
€35,99
999
€34,99
SKU:
MP-12F-MB
Branded MP-12F Right Hand Imperial Steel / Nylon Lined Maintenance Free Plain Male Rod End 3/4 BSF Thread - Allow 7-10 Days
- Regular price
- €49,99 ex VAT
- Sale price
- €49,99
- Regular price
-
Description
|
MP Series Nylon Lined Maintenance Free Male Rod Ends: The MP series are classed as maintenance free rod end bearings. They are self-lubricating general purpose male rod ends suitable for light to medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. They have excellent moisture resistance and require no maintenance. Materials: Housing: Steel 230M07PB zinc plated white and blue passivate (silver/clear) and stainless steel 303L. Race: GR-nylon LV-3H. Ball: Bearing steel 100Cr6, case hardened and electroless nickel plated and stainless steel 440C and SAE660. Operating Temperature Range: Operating temperature range -30c to +170c Benefits: Low friction, self-lubricating, good wear resistance, excellent moisture resistance . |
Technical
| Bore size | = | 3/4 inch |
| Thread | = | 3/4 BSF |
| W | = | 0.875 inch |
| H | = | 0.685 inch |
| D | = | 1.875 inch |
| L1 | = | 2.875 inch |
| L2 | = | 1.75 inch |
| O | = | 0.978 inch |
| Static load | = | 52400 N |
