SKU: MFC3-RHP
RHP MFC3 Four Bolt Round Cast Iron Flanged Bearing Unit and 3 inch Insert
- Regular price
- €373,17 ex VAT
- Sale price
- €373,17
- Regular price
-
In stock
Quantity Price Breaks
10+
€332,12
19+
€313,46
29+
€309,73
39+
€306,00
49+
€302,27
74+
€298,54
99+
€279,88
199+
€276,15
249+
€272,41
499+
€268,68
999+
€261,22
SKU:
MFC3-RHP
RHP MFC3 Four Bolt Round Cast Iron Flanged Bearing Unit and 3 inch Insert
- Regular price
- €373,17 ex VAT
- Sale price
- €373,17
- Regular price
-
Description
|

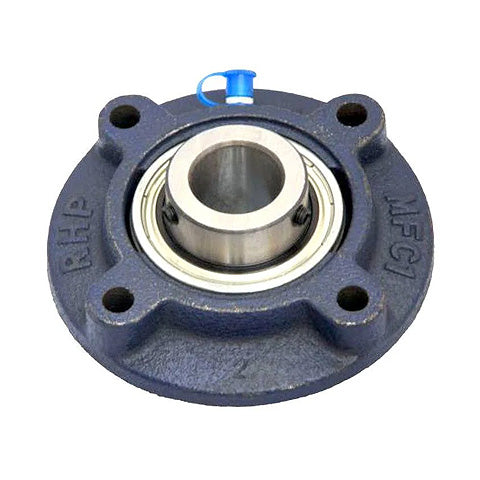

RHP MFC Series Heavy Duty 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
Technical
| Bore | = | 3 inch |
| L | = | 8.748 inch |
| H | = | 6.375 inch |
| J | = | 7.5 inch |
| G | = | 0.625 inch |
| A1 | = | 2 inch |
| A4 | = | 0.657 inch |
| A5 | = | 0.5 inch |
| B | = | 3.25 inch |
| s | = | 1.314 inch |
| d1 | = | 3.878 inch |
| Dynamic load | = | 71500 N |
| Static load | = | 54500 N |
| Rec max speed | = | 2150 rpm |
| Weight | = | 5.4 kg |
| Insert | = | < |
| a href=" | = | advanced_search_result.php?keywords=1080-3G+insonly" |
| > | = | 1080-3G Click Here< |
| /a> | = | |
| Casting group | = | 9 |
| Grease nipple thread | = | 1/4 UNF, 1/4 inch x 28 TPI |
