SKU: MFC3.7/16-RHP
RHP MFC3-7/16 Four Bolt Round Cast Iron Flanged Bearing Unit and 3-7/16 inch Insert
- Regular price
- €626,88 ex VAT
- Sale price
- €626,88
- Regular price
-
In stock
Quantity Price Breaks
10+
€557,92
19+
€526,58
29+
€520,31
39+
€514,04
49+
€507,77
74+
€501,50
99+
€470,16
199+
€463,89
249+
€457,62
499+
€451,35
999+
€438,82
SKU:
MFC3.7/16-RHP
RHP MFC3-7/16 Four Bolt Round Cast Iron Flanged Bearing Unit and 3-7/16 inch Insert
- Regular price
- €626,88 ex VAT
- Sale price
- €626,88
- Regular price
-
Description
|

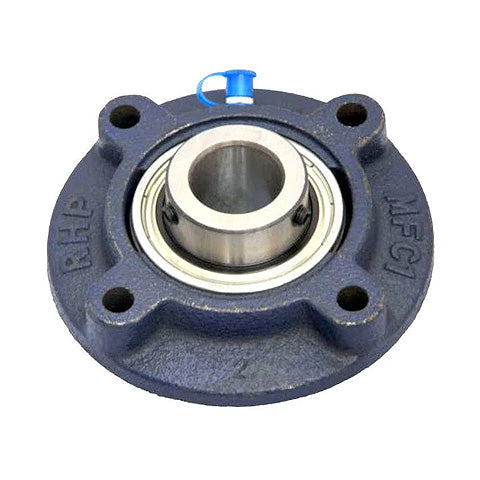

RHP MFC Series Heavy Duty 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
Technical
| Bore | = | 3-7/16 inch |
| L | = | 10.252 inch |
| H | = | 7.375 inch |
| J | = | 8.625 inch |
| G | = | 0.75 inch |
| A1 | = | 2.656 inch |
| A4 | = | 1.157 inch |
| A5 | = | 0.5 inch |
| B | = | 3.781 inch |
| s | = | 1.564 inch |
| d1 | = | 4.396 inch |
| Dynamic load | = | 96000 N |
| Static load | = | 71500 N |
| Rec max speed | = | 1900 rpm |
| Weight | = | 9.8 kg |
| Insert | = | < |
| a href=" | = | advanced_search_result.php?keywords=1090-3-7/16G+insonly" |
| > | = | 1090-3-7/16G Click Here< |
| /a> | = | |
| Casting group | = | 10 |
| Grease nipple thread | = | 1/4 UNF, 1/4 inch x 28 TPI |
