SKU: MFC2.3/16-RHP

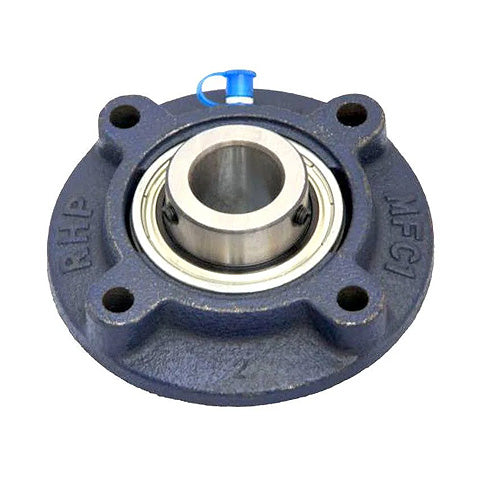

RHP MFC2-3/16 Four Bolt Round Cast Iron Flanged Bearing Unit and 2-3/16 inch Insert
RHP MFC2-3/16 Four Bolt Round Cast Iron Flanged Bearing Unit and 2-3/16 inch Insert
Regular price
€189,75
ex VAT
Regular price
Sale price
€189,75
ex VAT
In stock
Price Break
10+
€144,20
20+
€136,10
30+
€134,48
40+
€132,86
50+
€131,24
75+
€129,62
100+
€121,52
200+
€119,89
250+
€118,27
500+
€116,65
1000+
€113,41
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP MFC Series Heavy Duty 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 55.56mm = 2.187 (2-3/16) inch
- Style:
- MFC
- Pitch Circle Diameter:
- 152.4mm = 6 inch

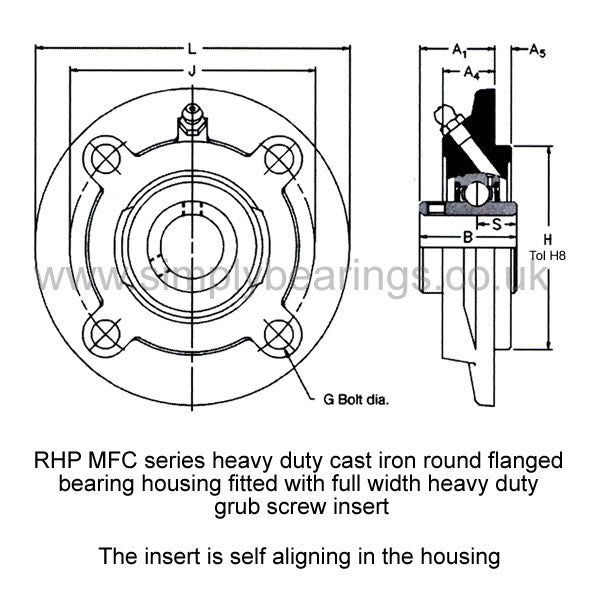

Technical
Technical
| Bore | 2-3/16 inch |
|---|---|
| L | 7.126 inch |
| H | 5 inch |
| J | 6 inch |
| G | 0.5 inch |
| A1 | 1.687 inch |
| A4 | 0.626 inch |
| A5 | 0.374 inch |
| B | 2.562 inch |
| s | 1.002 inch |
| d1 | 2.966 inch |
| Dynamic load | 48000 N |
| Static load | 33000 N |
| Rec max speed | 2800 rpm |
| Weight | 3.4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1060-2-3/16G+insonly">1060-2-3/16G Click Here</a> |
| Casting group | 6 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
