SKU: MFC2.1/4-RHP

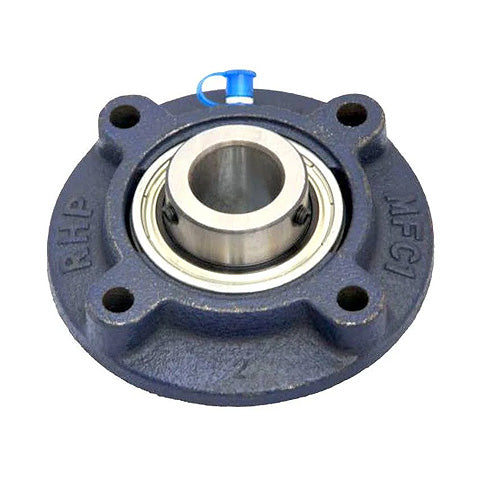

RHP MFC2-1/4 Four Bolt Round Cast Iron Flanged Bearing Unit and 2-1/4 inch Insert
- Regular price
- €190,86 ex VAT
- Sale price
- €190,86
- Regular price
-
In stock
Quantity Price Breaks
10+
€169,87
19+
€160,32
29+
€158,41
39+
€156,51
49+
€154,60
74+
€152,69
99+
€143,15
199+
€141,24
249+
€139,33
499+
€137,42
999+
€133,60
SKU:
MFC2.1/4-RHP
RHP MFC2-1/4 Four Bolt Round Cast Iron Flanged Bearing Unit and 2-1/4 inch Insert
- Regular price
- €190,86 ex VAT
- Sale price
- €190,86
- Regular price
-
Description
|
RHP MFC Series Heavy Duty 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
Technical
| Bore | = | 2-1/4 inch |
| L | = | 7.126 inch |
| H | = | 5 inch |
| J | = | 6 inch |
| G | = | 0.5 inch |
| A1 | = | 1.687 inch |
| A4 | = | 0.626 inch |
| A5 | = | 0.374 inch |
| B | = | 2.562 inch |
| s | = | 1.002 inch |
| d1 | = | 2.966 inch |
| Dynamic load | = | 48000 N |
| Static load | = | 33000 N |
| Rec max speed | = | 2800 rpm |
| Weight | = | 3.4 kg |
| Insert | = | < |
| a href=" | = | advanced_search_result.php?keywords=1060-2-1/4G+insonly" |
| > | = | 1060-2-1/4G Click Here< |
| /a> | = | |
| Casting group | = | 6 |
| Grease nipple thread | = | 1/4 UNF, 1/4 inch x 28 TPI |
