SKU: MFC1.3/16-RHP

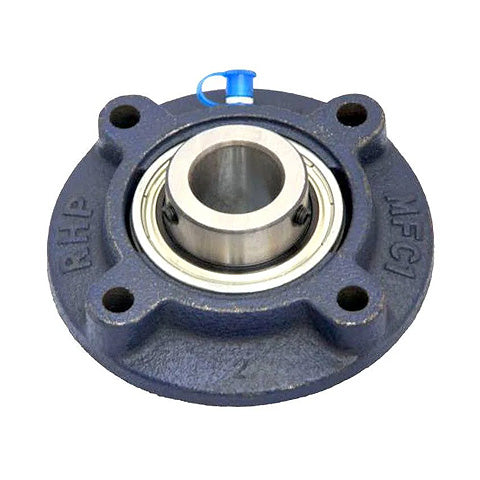

RHP MFC1-3/16 Four Bolt Round Cast Iron Flanged Bearing Unit and 1-3/16 inch Insert
RHP MFC1-3/16 Four Bolt Round Cast Iron Flanged Bearing Unit and 1-3/16 inch Insert
Regular price
€100,85
ex VAT
Regular price
Sale price
€100,85
ex VAT
In stock
Price Break
10+
€76,63
20+
€72,33
30+
€71,47
40+
€70,61
50+
€69,75
75+
€68,88
100+
€64,58
200+
€63,72
250+
€62,86
500+
€62,00
1000+
€60,27
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP MFC Series Heavy Duty 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 30.16mm = 1.187 (1-3/16) inch
- Style:
- MFC
- Pitch Circle Diameter:
- 104.78mm = 4.125 (4-1/8) inch
Technical
Technical
| Bore | 1-3/16 inch |
|---|---|
| L | 5 inch |
| H | 3.375 inch |
| J | 4.125 inch |
| G | 0.375 inch |
| A1 | 1.312 inch |
| A4 | 0.748 inch |
| A5 | 0.252 inch |
| B | 1.688 inch |
| s | 0.69 inch |
| d1 | 1.838 inch |
| Dynamic load | 25700 N |
| Static load | 15300 N |
| Rec max speed | 4500 rpm |
| Weight | 1.5 kg |
| Insert | <a href="advanced_search_result.php?keywords=1035-1-3/16G+insonly">1035-1-3/16G Click Here</a> |
| Casting group | 2 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
