SKU: LM.30.UU.AJ.EU

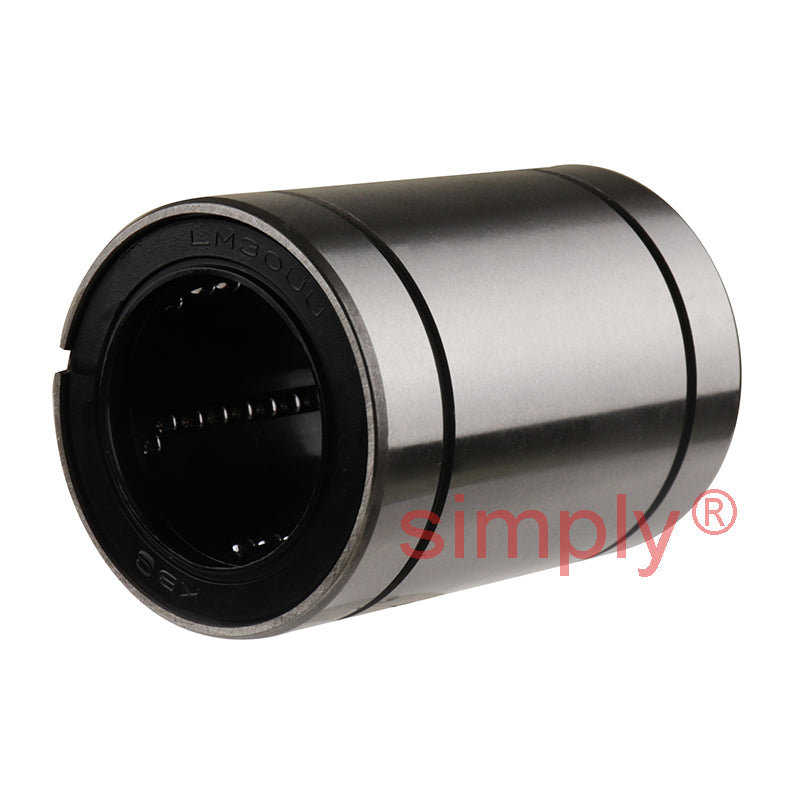

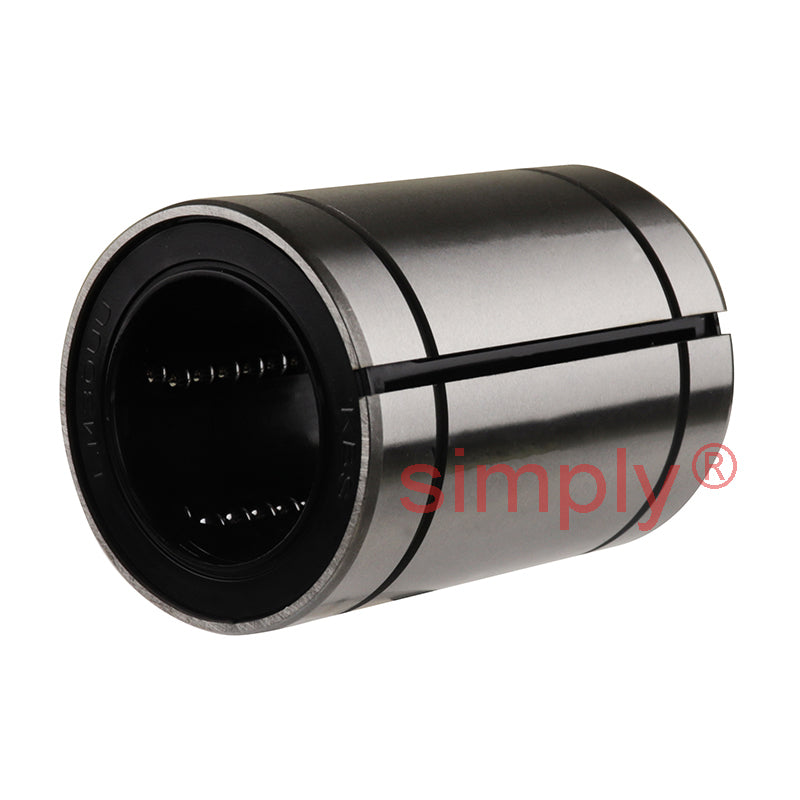

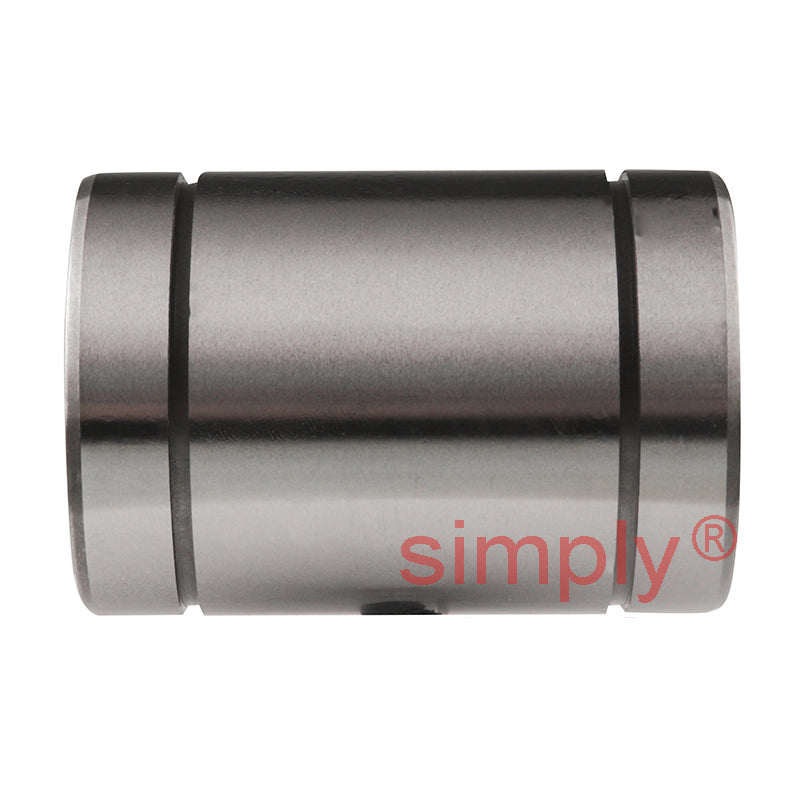

LM30UUAJ Adjustable Linear Ball Bushing with Rubber Seals 30x45x64mm
- Regular price
- €21,75 ex VAT
- Sale price
- €21,75
- Regular price
-
Quantity Price Breaks
LM30UUAJ Adjustable Linear Ball Bushing with Rubber Seals 30x45x64mm
- Regular price
- €21,75 ex VAT
- Sale price
- €21,75
- Regular price
-
Description
LM-AJ Series Rubber Sealed Linear Ball Bushings: Manufactured with rubber seals these linear ball bushings are characterised by their smooth movement, high rigidity and low friction, they are easy to maintain or replace and have a good life span in service. They consist of steel outer housings with sets of balls running around their own tracks within the low friction polyamide / steel inner raceways. The UU series has the benefit of rubber seals to prevent the ingress of dust and moisture. |
Technical
| Inside Diameter dr | = | 30mm Tol + 0 to - 7& |
| micro | = | m |
| Outside Diameter D | = | 45mm Tol + 0 to - 14& |
| micro | = | m |
| Length L | = | 64mm Tol + 0 to - 300& |
| micro | = | m |
| W | = | 1.85mm |
| D1 | = | 43mm |
| h | = | 2.5mm |
| Eccentricity | = | 10& |
| micro | = | m |
| Dynamic load C | = | 140 kgf |
| Static load C< | = | sub> |
| o< | = | /sub> |
| = | 255 kgf | |
| Weight | = | 250 g |
| B | = | 44.5mm Tol + 0 to - 300& |
| micro | = | m |
| Number of ball rows | = | 6 |
