SKU: LM.16.UU.AJ.EU

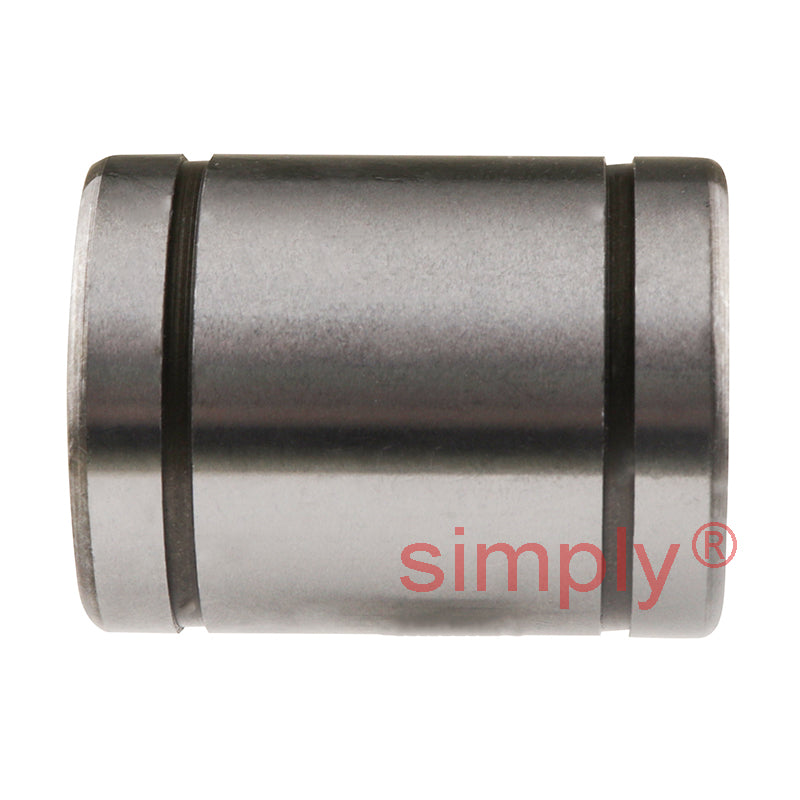

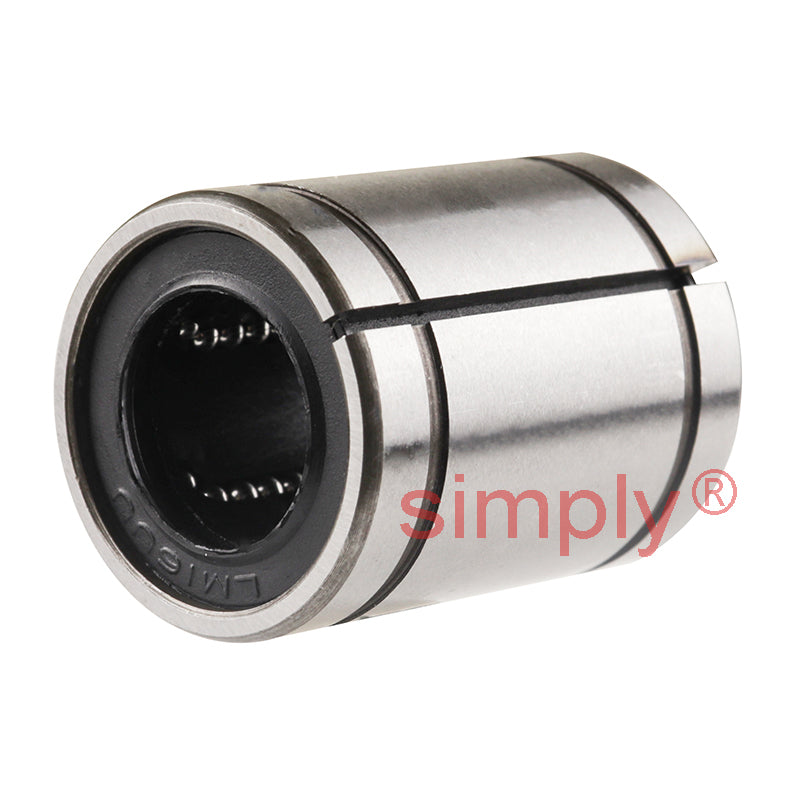

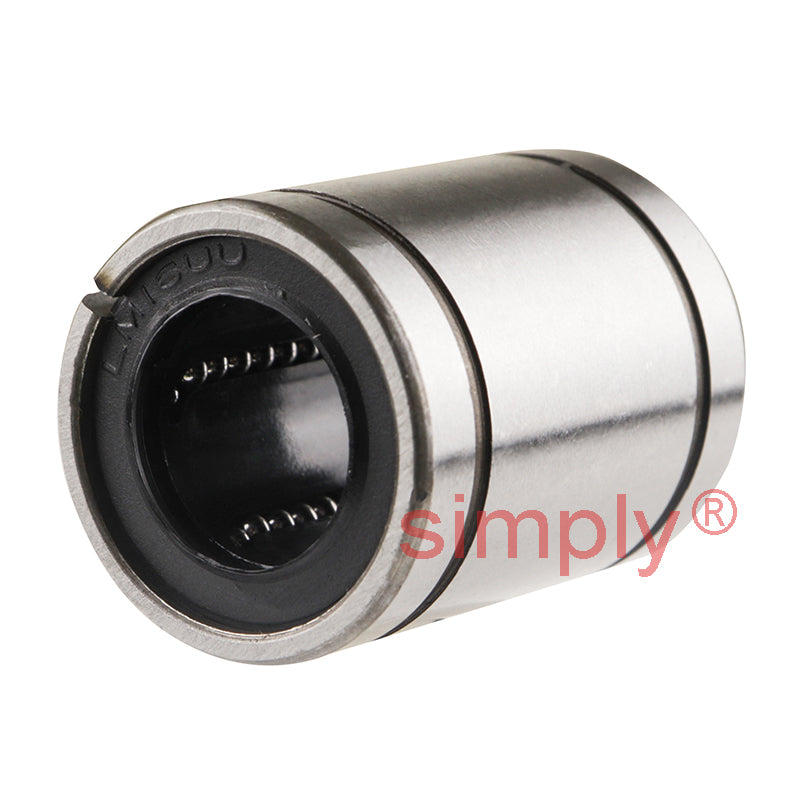

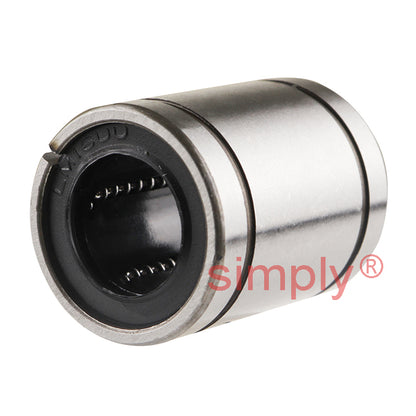

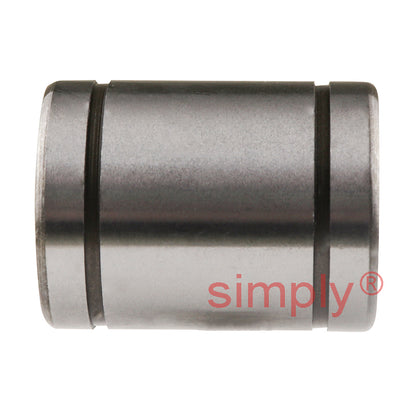

LM16UUAJ Adjustable Linear Ball Bushing with Rubber Seals 16x28x37mm
- Regular price
- €14,45 ex VAT
- Sale price
- €14,45
- Regular price
-
Quantity Price Breaks
LM16UUAJ Adjustable Linear Ball Bushing with Rubber Seals 16x28x37mm
- Regular price
- €14,45 ex VAT
- Sale price
- €14,45
- Regular price
-
Description
LM-AJ Series Rubber Sealed Linear Ball Bushings: Manufactured with rubber seals these linear ball bushings are characterised by their smooth movement, high rigidity and low friction, they are easy to maintain or replace and have a good life span in service. They consist of steel outer housings with sets of balls running around their own tracks within the low friction polyamide / steel inner raceways. The UU series has the benefit of rubber seals to prevent the ingress of dust and moisture. |

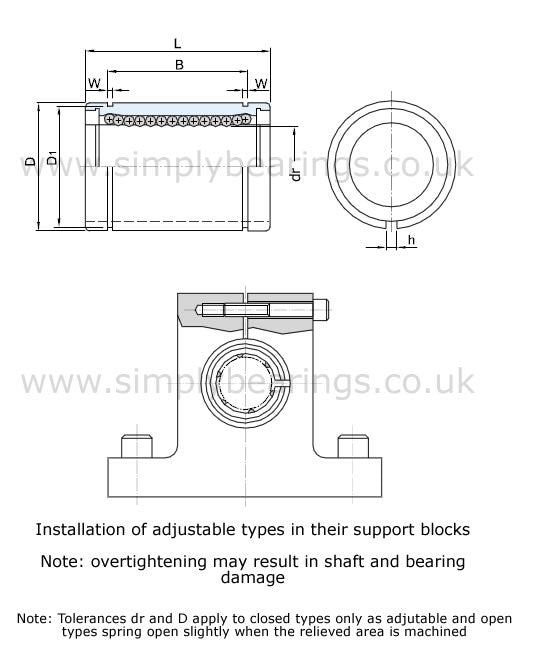

Technical
| Inside Diameter dr | = | 16mm Tol + 0 to - 6& |
| micro | = | m |
| Outside Diameter D | = | 28mm Tol + 0 to - 12& |
| micro | = | m |
| Length L | = | 37mm Tol + 0 to - 200& |
| micro | = | m |
| W | = | 1.6mm |
| D1 | = | 27mm |
| h | = | 1.5mm |
| Eccentricity | = | 8& |
| micro | = | m |
| Dynamic load C | = | 49 kgf |
| Static load C< | = | sub> |
| o< | = | /sub> |
| = | 78 kgf | |
| Weight | = | 69 g |
| B | = | 26.5mm Tol + 0 to - 200& |
| micro | = | m |
| Number of ball rows | = | 5 |
