• Premier Budget LHSA14L Left Hand Thread Studded Elbow L-Ball End Joint M14x2mm Thread
1 1

SKU: LHSA14LSQL14-RS-1-EU

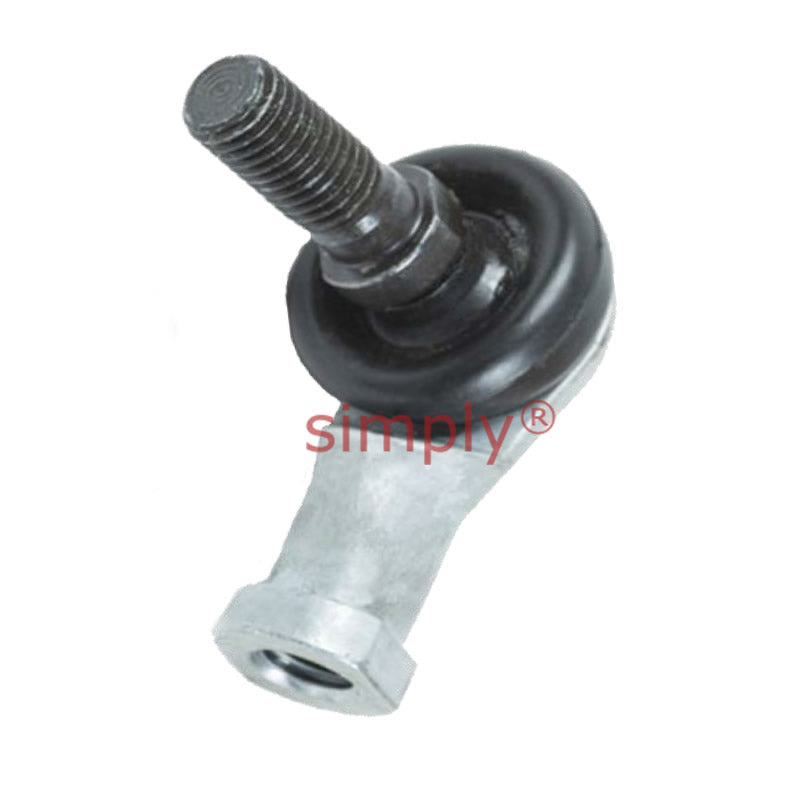

Premier Budget LHSA14L Left Hand Thread Studded Elbow L-Ball End Joint M14x2mm Thread

Premier Budget LHSA14L Left Hand Thread Studded Elbow L-Ball End Joint M14x2mm Thread
€25,27 ex VAT
€25,27 ex VAT
Sale Sold out

Equivalent to: SQL14-RS-1

In stock

Price Break
10+ €19,21
19+ €18,13
29+ €17,91
39+ €17,70
49+ €17,48
74+ €17,27
99+ €16,19
199+ €15,97
249+ €15,76
499+ €15,54
999+ €15,11

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
ZTG61YLGBR
Brand / Quality:
EU Budget - Economy Quality
Thread Size:
M14x2
Thread Direction:
Left Hand
Technical

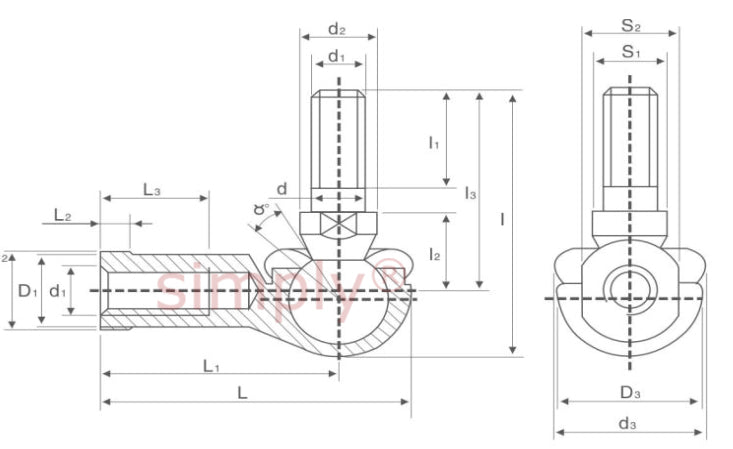

--- Part Details
d 14mm
d1 M14x2mm
d2 19mm
d3 38mm
l 79.5mm
l1 28mm
l2 21.5mm
l3 56mm
S1 17mm
L 75mm
L1 57mm
L2 8mm
L3 26mm
D1 20mm
D2 25mm
D3 35mm
S2 22mm
--- Angles and Loading
Deflection angle max a 25degrees
Load Rating(kN) 19kN
Weight(g) 254g
