SKU: LFTC35EC-RHP
RHP LFTC35EC Two Bolt Oval Cast Iron Flange Housing Bearing 35mm Bore
RHP LFTC35EC Two Bolt Oval Cast Iron Flange Housing Bearing 35mm Bore
Regular price
€65,23
ex VAT
Regular price
Sale price
€65,23
ex VAT
In stock
Price Break
10+
€49,57
20+
€46,79
30+
€46,23
40+
€45,67
50+
€45,12
75+
€44,56
100+
€41,78
200+
€41,22
250+
€40,66
500+
€40,10
1000+
€38,99
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|

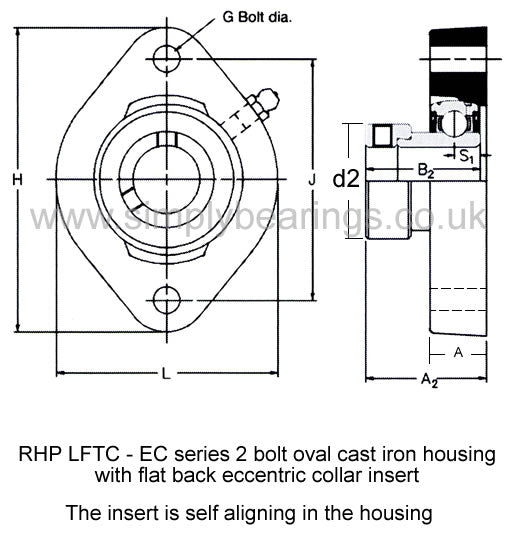

RHP LFTC EC Series 2 Bolt Oval Cast Iron Housing Units: Two bolt oval cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 35mm
- Style:
- LFTC
- Bolt Hole Centres:
- 100mm
Technical
Technical
| Bore | 35mm |
|---|---|
| L | 93mm |
| H | 125mm |
| J | 100mm |
| G | 10mm |
| A | 22mm |
| A2 | 41.74mm |
| B2 | 38.88mm |
| s1 | 9.55mm |
| d2 | 55.58mm |
| Dynamic load | 25700 N |
| Static load | 15300 N |
| Rec max speed | 4500 rpm |
| Weight | 1.1 kg |
| Insert | <a href="advanced_search_result.php?keywords=1235-35ECG+insonly">1235-35ECG Click Here</a> |
| Casting group | 5 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
