SKU: LFTC30A-RHP

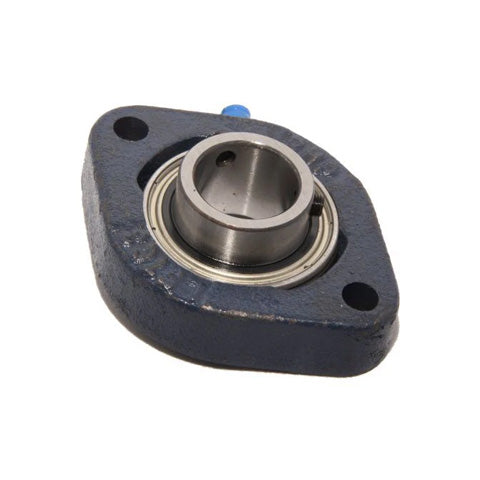

RHP LFTC30A Two Bolt Oval Cast Iron Flange Housing Bearing 30mm Bore
RHP LFTC30A Two Bolt Oval Cast Iron Flange Housing Bearing 30mm Bore
Regular price
€53,08
ex VAT
Regular price
Sale price
€53,08
ex VAT
In stock
Price Break
10+
€40,33
20+
€38,07
30+
€37,61
40+
€37,16
50+
€36,71
75+
€36,26
100+
€33,99
200+
€33,54
250+
€33,08
500+
€32,63
1000+
€31,72
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP LFTC A Series 2 Bolt Oval Cast Iron Housing Units: Two bolt oval cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 30mm
- Style:
- LFTC
- Bolt Hole Centres:
- 90.5mm

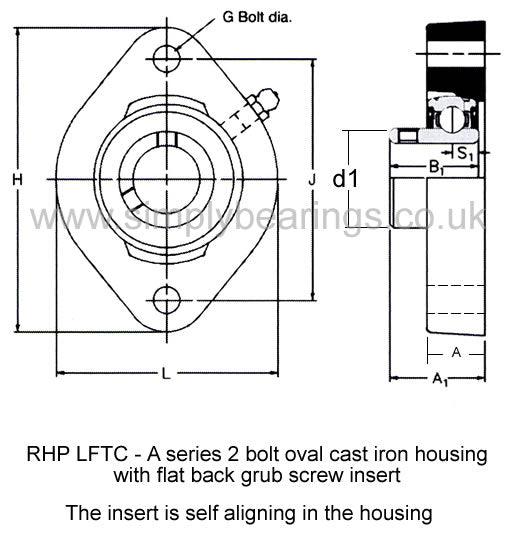

Technical
Technical
| Bore | 30mm |
|---|---|
| L | 84mm |
| H | 112mm |
| J | 90.5mm |
| G | 10mm |
| A | 20.5mm |
| A1 | 33.62mm |
| B1 | 31.21mm |
| s1 | 9.04mm |
| d1 | 40mm |
| Dynamic load | 19500 N |
| Static load | 11300 N |
| Rec max speed | 5300 rpm |
| Weight | 0.8 kg |
| Insert | <a href="advanced_search_result.php?keywords=1230-30AG+insonly">1230-30AG Click Here</a> |
| Casting group | 4 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
